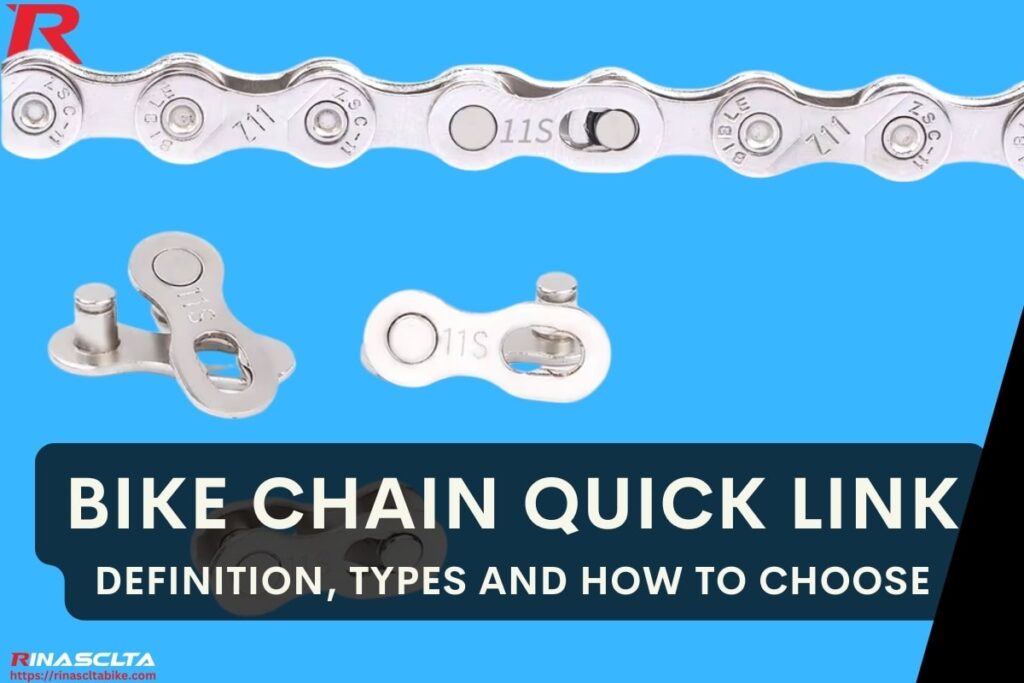

Bike chain quick link: definition, types and how to choose

What is a quick link for a bike chain?

A quick link for a bike chain is a removable, reusable link designed to connect the ends of a bike chain without needing special tools or pressing pins, first popularized in the 1990s by brands like KMC, SRAM, and Connex to simplify chain installation, repair, and maintenance. A quick link changed the game by allowing riders to easily remove and clean their chains, perform on-the-go fixes, and replace chains faster, especially as drivetrains evolved to include narrower, higher-speed chains (like 11-speed and 12-speed) that required more precise and reliable connection methods.

How does a bike chain quick link work?

A bike chain quick link works by using two specially shaped outer plates with integrated pins that slide into the ends of the chain, which, when pulled tight under pedal pressure or locked manually with master link pliers, snap securely into place, creating a strong, tool-free connection that holds the chain together while allowing for easy removal and reinstallation during maintenance, chain cleaning, or replacement.

Do all bike chains have a quick link?

No, not all bike chains have a quick link because some chains, especially from manufacturers like Shimano, are designed to use connecting pins for permanent installation, prioritizing strength and security over reusability. But many modern chains, particularly from SRAM, KMC, and Connex, include quick links to allow for easier removal and maintenance, with the choice depending on the brand, chain speed compatibility, and rider preference for serviceability.

How many quick links are in a chain?

There is typically one quick link in a bike chain because its purpose is to replace a single standard link to join the two ends of the chain securely, allowing for easy removal and reinstallation without tools, while using more than one quick link is unnecessary and can compromise chain strength, flexibility, and shifting performance.

How is the bike chain quick link made?

A bike chain quick link is commonly made from stainless steel or titanium, chosen for its high strength, durability, corrosion resistance, and ability to withstand the repetitive stress and torque applied to modern bike drivetrains.

1. Stainless Steel: Stainless steel quick links are the most common, offering an excellent balance of affordability, rust resistance, and long-lasting durability, making them ideal for everyday riding in varying weather conditions.
2. Titanium: Titanium quick links are lighter and stronger than steel, providing superior strength-to-weight ratio, extreme corrosion resistance, and are often used in high-performance or weight-sensitive applications like competitive road cycling.

What are the types of bike chain quick links?

The types of bike chain quick links are designed to match specific drivetrain systems, including 7-speed, 8-speed, 9-speed, 10-speed, 11-speed, and 12-speed chains, because each chain width varies with the number of speeds, requiring precise quick link dimensions to ensure proper fit, strength, and shifting performance.

1. 7-Speed Quick Link: Made for wider 7-speed chains (around 7.3 mm external width), commonly used on entry-level, commuter, and kids’ bikes.
2. 8-Speed Quick Link: Designed for 8-speed chains (about 7.1 mm width), offering strong, reliable connections for casual, hybrid, and mountain bikes.
3. 9-Speed Quick Link: Fits 9-speed chains (approximately 6.6-7.0 mm), popular in older mountain bikes, touring bikes, and affordable road bikes.
4. 10-Speed Quick Link: Built for narrower 10-speed chains (around 5.9-6.2 mm), ensuring smooth shifting for road, gravel, and mountain bikes.
5. 11-Speed Quick Link: Precision-made for 11-speed chains (around 5.5-5.6 mm), supporting high-performance road racing and MTB drivetrains with tight gear spacing.
6. 12-Speed Quick Link: The narrowest quick link type (about 5.3 mm), engineered to handle wide-range cassettes and high-torque demands in modern MTB and gravel bike setups, such as SRAM Eagle or Shimano XTR systems.

Are bike chain quick links different sizes?

Yes, bike chain quick links are different sizes because each is specifically designed to match the width and pitch of the chain for its corresponding speed system (such as 8-speed, 10-speed, 12-speed), ensuring proper fit, strength, and shifting performance, but using the wrong size can lead to poor chain alignment, skipping, or even chain failure.

Are 8-speed quick links compatible with a 10-speed chain?

No, 8-speed quick links are not compatible with a 10-speed chain because 8-speed chains are wider (around 7.1 mm) than 10-speed chains (around 6.0 mm), making the link physically too large to securely hold a narrower 10-speed chain, which can cause misalignment, poor shifting, and potential chain separation.

Bike chain quick link diagram

A bike chain quick link diagram visually illustrates how the quick link connects the two ends of a chain, showing its individual parts, proper orientation, and how it integrates with the chain plates and pins to create a secure, reusable connection. This diagram helps riders understand the correct installation, alignment, and function of the quick link to ensure safe, efficient, and reliable performance during rides and maintenance.

[DIAGRAM]

How do you choose the bike chain quick link?

To choose the right bike chain quick link, you must consider the chain speed compatibility, brand compatibility, material, reusability, and riding conditions, ensuring the link matches your drivetrain for optimal performance, durability, and safety.

1. Chain Speed Compatibility: Select a quick link that matches your chain’s speed (such as 8-speed, 10-speed, or 12-speed), as each has specific width requirements to maintain smooth shifting and proper chain tension.
2. Brand Compatibility: Choose a quick link recommended by your chain’s manufacturer (Shimano, SRAM, KMC) to ensure precise fitment and avoid potential shifting issues, since not all links work across brands.
3. Material: Consider materials like stainless steel for durability or titanium for lightweight performance, depending on your priority for longevity, weight savings, or corrosion resistance.
4. Reusability: Check if the quick link is single-use or reusable, as higher-speed systems (like 11-speed and 12-speed) often require new links after removal to maintain strength.
5. Riding Conditions: Choose quick links designed for your environment, such as reinforced links for e-bikes or wet-weather coatings to resist rust in harsh conditions, ensuring drivetrain reliability and safety.

How do you install a bike chain quick link?

You can install a bike chain quick link by first threading the chain through the front chainring, rear derailleur pulleys, and cassette, then aligning the two ends of the chain and inserting the quick link halves into the outermost plates of each chain end; once connected, pull the chain tight to snap the quick link into place, using master link pliers for easier locking if needed, and finally rotating the cranks to check that the link is securely seated and moves smoothly through the drivetrain.

What is the chain quick link direction?

The chain quick link direction refers to the correct orientation of the quick link plates relative to the chain’s movement, and on directional quick links (especially on 11-speed and 12-speed systems from brands like Shimano), the arrow or marking on the link should point in the forward pedaling direction when positioned on the top section of the chain, ensuring proper engagement with the cassette, chainring, and derailleur pulleys for smooth shifting, but non-directional quick links (such as some from KMC or Connex) can be installed facing either way without affecting performance.

Do I need a chain tool when using quick links?

Yes, you need a chain tool when using quick links because you must first size the chain by removing extra links with a chain breaker tool to achieve the correct length before installing the quick link, but for the actual connection and disconnection of the quick link itself, you typically use master link pliers or apply pedal pressure to lock and unlock the link easily.

What are the tools for bicycle chain quick links?

 The tools for bicycle chain quick links include a quick link chain connector, a chain hook, and quick link pliers, each designed to make installation and removal of quick links easier, faster, and safer during chain maintenance.

1. Quick Link Chain Connector: This refers to the quick link itself, a special pair of link plates with integrated pins used to securely join the ends of the bike chain without pressing in a standard chain pin.
2. Chain Hook: A simple tool (often a bent piece of wire) that holds the chain ends together under tension during installation, preventing the chain from slipping while you position the quick link.
3. Quick Link Pliers: Specialized pliers are used to both install (by pulling apart to lock the link) and remove (by squeezing to unlock the link) quick links, ensuring a secure connection or safe removal without excessive force.

How do you remove the bike chain quick link?

You can remove the bike chain quick link by using quick link pliers to squeeze the link’s side plates together, releasing the locking pins and allowing you to separate the chain easily for cleaning, maintenance, or replacement.

How do you open a quick link chain without the tool?

You can open a quick link chain without the tool by aligning the quick link on the top section of the chain, holding the cranks steady, and firmly pressing the chain ends together while pulling the link’s plates towards each other with your hands or tapping it gently with a rubber mallet to disengage the lock, though this method requires more force and may be difficult on higher-speed chains.

How do you find the quick link on a chain?

You can find the quick link on a chain by slowly rotating the cranks backward while inspecting the chain for a link that looks slightly different, often identifiable by wider side plates, subtle markings, or small oval cutouts, which distinguish it from the uniform appearance of regular chain links.

Can the chain quick link be reused?

Yes, a chain quick link can be reused if it is specifically labeled as reusable by the manufacturer (like some KMC and Connex quick links), but most modern quick links for 11-speed and 12-speed systems (such as from Shimano and SRAM) are single-use only to maintain optimal strength and safety after opening.

Can I use a quick link on a Shimano chain?

Yes, you can use a quick link on a Shimano chain if the quick link matches the chain speed and Shimano’s compatibility guidelines, but Shimano only recommends their own SM-CN quick links for specific speeds to ensure proper fit and shifting performance.

Do Shimano chains come with a quick link?

Yes, Shimano chains can come with a quick link if you purchase models that include the SM-CN quick link (typically for 11-speed and 12-speed systems), but some chains still come with connecting pins instead, so it’s important to check the product details before purchase.

Does Trek bike have a chain quick link?

Yes, Trek bikes can have a chain quick link if they are equipped with a drivetrain that uses a chain compatible with quick links, but this depends on the specific model, groupset, and OEM bike parts, as Trek sources drivetrains from brands like Shimano and SRAM.

Can you use the Shimano quick link on the KMC chain?

Yes, you can use a Shimano quick link on a KMC chain if the speed matches (such as 11-speed to 11-speed) and the chain dimensions are the same, but it’s generally recommended to use the same brand’s quick link for best fit and shifting accuracy.

Can you use the Shimano quick link on the Sram chain?

Yes, you can use a Shimano quick link on a SRAM chain if both are the same speed and have similar chain widths (like 11-speed), but some minor differences in design may affect shifting smoothness, so matching the quick link brand to the chain is often preferred.

Will Sram quick link work on the Shimano chain?

Yes, an SRAM quick link will work on a Shimano chain if the speeds match (such as 10-speed SRAM link on a 10-speed Shimano chain) and the chain dimensions are compatible, but for 12-speed systems, SRAM and Shimano use different roller and plate profiles, so cross-brand use is less reliable and not officially recommended.

Why would you need spare quick chain links?

You need spare quick chain links because they allow you to quickly repair a broken or damaged bike chain on the trail or during a ride without needing a full chain replacement, ensuring you can reconnect the chain after removing a damaged section with a chain breaker tool, and restore safe drivetrain function to keep riding without being stranded, especially on long rides, bikepacking trips, or races where chain failure can end your ride.

How long does a bike chain quick link last?

A bike chain quick link typically lasts as long as the chain itself, around 2,000 to 3,500 miles (3,200 to 5,600 km) depending on riding conditions, chain maintenance, and drivetrain wear, because it shares the same load, friction, and wear as the rest of the chain. Signs that it’s time to replace the quick link include visible wear on the plates, stretched or loosened fit, difficulty locking, or poor shifting performance, and if it’s a single-use link (like many 11-speed and 12-speed quick links), it must be replaced every time the chain is disconnected.

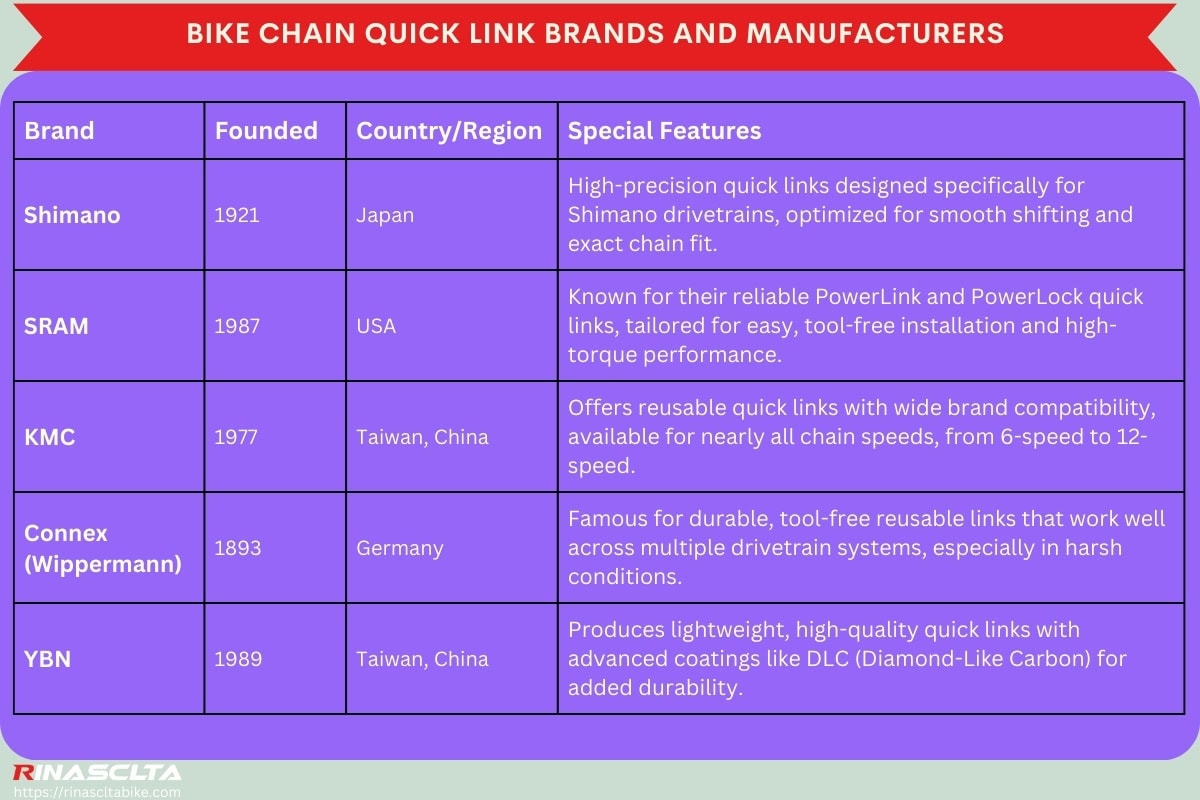

Bike chain quick link brands and manufacturers

Several trusted brands manufacture bike chain quick links, each designed to match their drivetrain systems or offer universal compatibility. These bike brands focus on durability, ease of use, and precise fit for specific chain speeds and bike types, making it important to choose a quick link from a reputable manufacturer for safe and smooth performance.
