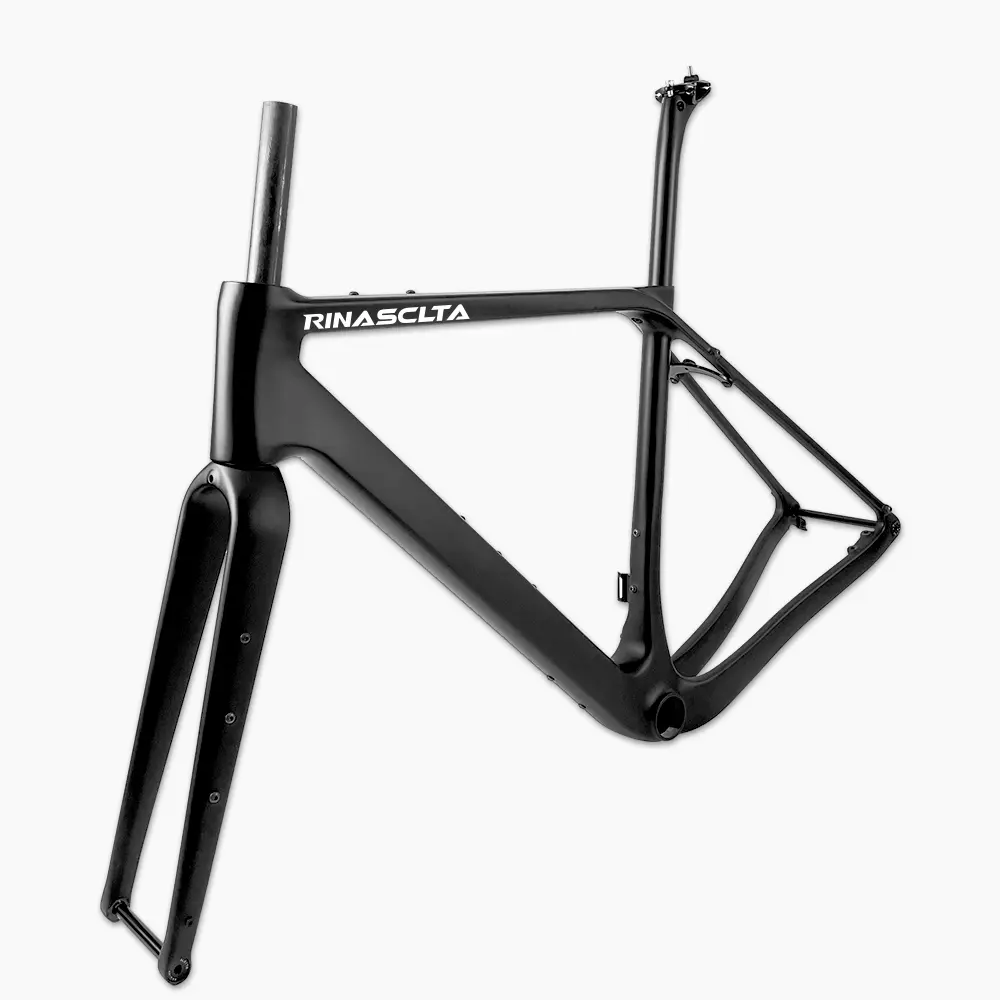

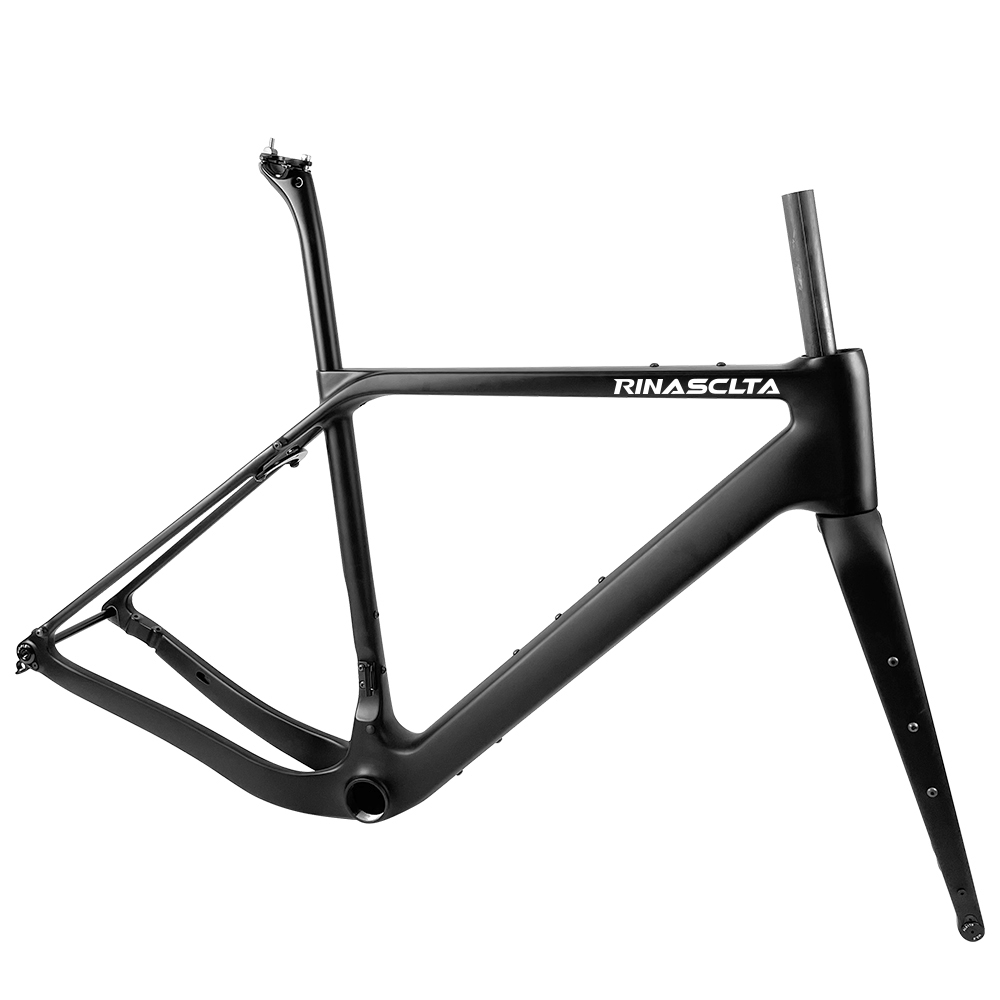

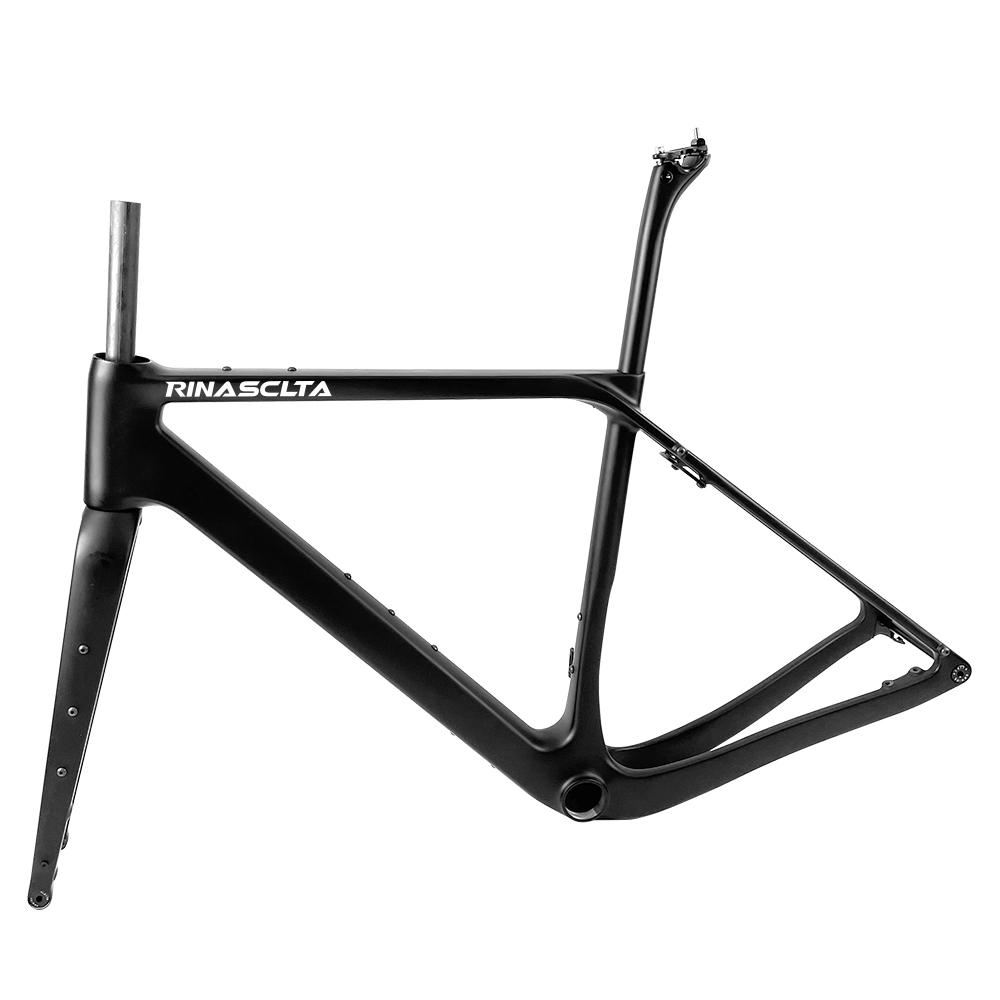

The Rinasclta GR025 carbon gravel frameset is built from T800+T1000-grade Toray carbon, one of the strongest and lightest fibers in the cycling world. Designed with aggressive geometry and a sleek UD carbon weave, this frameset balances lightweight performance with rugged durability. The T47 threaded bottom bracket ensures stiffness and ease of maintenance, while the internal cable routing keeps your bike clean and aerodynamic.
With thru-axles front and rear, a choice of matte or glossy finishes, and compatibility with both Di2 and mechanical drivetrains, the GR025 adapts effortlessly to your build preferences. Its capacity for 700x50C tires gives you the freedom to conquer technical trails, dusty fire roads, or tarmac stretches with ease.
From weekend warriors to gravel racers, the GR025 is engineered to give you the confidence to go further and faster.
- Ultra-Strong, Lightweight Frame: Constructed from T800+T1000 Toray carbon fiber, weighing just 1250g (M size) for the frame, offering high stiffness-to-weight ratio.
- Massive Tire Clearance: Accommodates up to 700x50C tires, providing superior traction and comfort over rough terrain.
- Versatile Drivetrain Compatibility: Works with both Di2 and mechanical groupsets, featuring a stationary front derailleur mount for maximum flexibility.
- Modern Standards: Equipped with T47 bottom bracket, internal cable routing, and 12mm thru-axles for optimized performance and clean aesthetics.
- Complete Frameset Package: Includes frame, fork, seatpost, headsets, clamp, BB transfer, and thru axle rod — everything you need to start your gravel bike build.
Backed by a 2-year warranty, the Rinasclta GR025 is more than a frame — it’s your ticket to all-road freedom.
TECHNICAL SPECIFICATIONS
| Material | Full Torayca T800 & T1000 Carbon Fiber |
| Frameset include | Frame, Fork, clamp, hanger, seatpost |
| Frame weight | 1200±20g (M size) |
| Fork weight | 450g (with thru axle) |
| Seatpost weight | 190g |
| Weave | UD |
| Finish | Clear coating |
| Headtube | 1-1/2″ to 1-1/2″ (52mm to 52mm) |
| Seatpost | 27.2mm |
| BB | T47 Thread |
| Available Frame sizes | XS/S/M/L/XL |
| Derailleur compatibility | Di2 or Mechanical |
| Max tire clearance | 700c*50mm |
| Front Hanger | 100*12mm |
| Rear Hanger | 142*12mm |
| Disc | 160mm |
| Warranty | 2 Years |
CARBON GRAVEL BIKE FRAMESET FEATURES
Aero Frame and Fork
Aerodynamic frame and fork design, offer you the faster aero efforts under your normal power
Aero Headtube
Full internal cable route aero gravel bike tubes

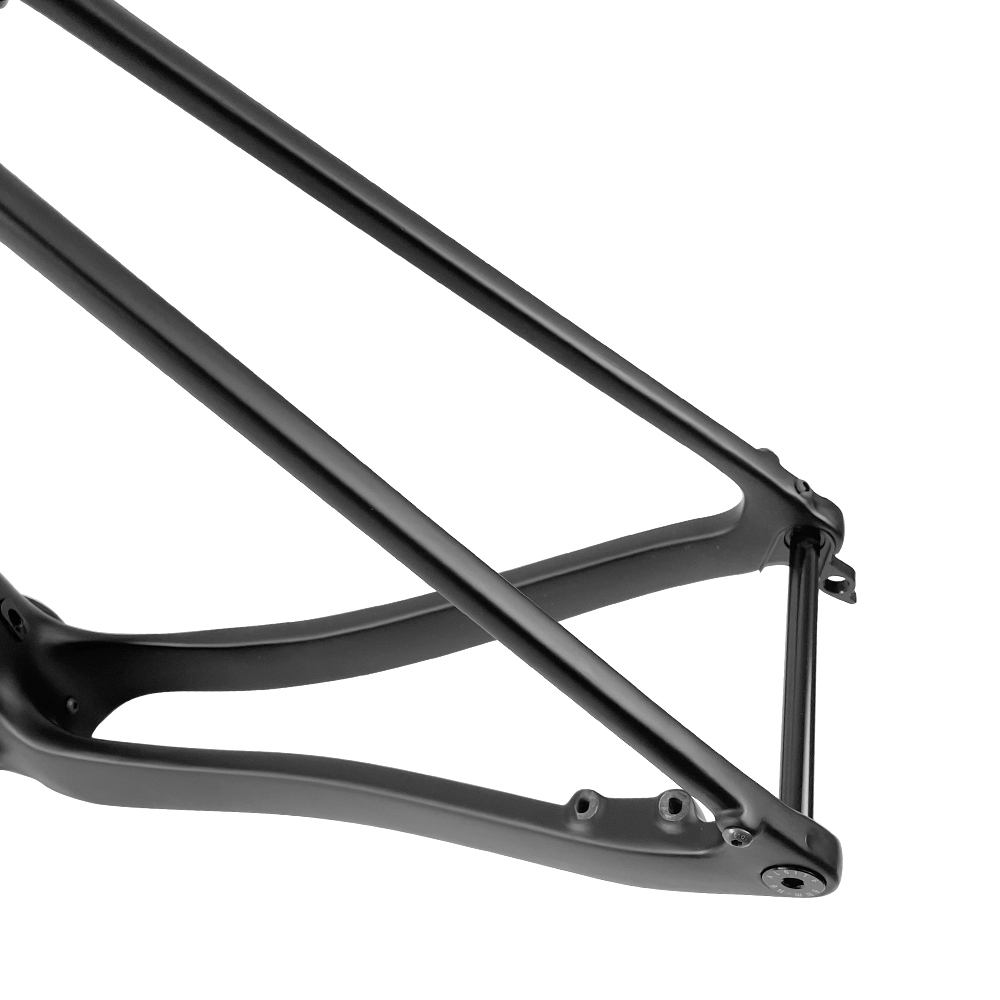

Rear Flat Disc Mount
Rear Hangers: 142*12mm
Disc brake rotor: 140/160mm
Hole distance: 35.5mm

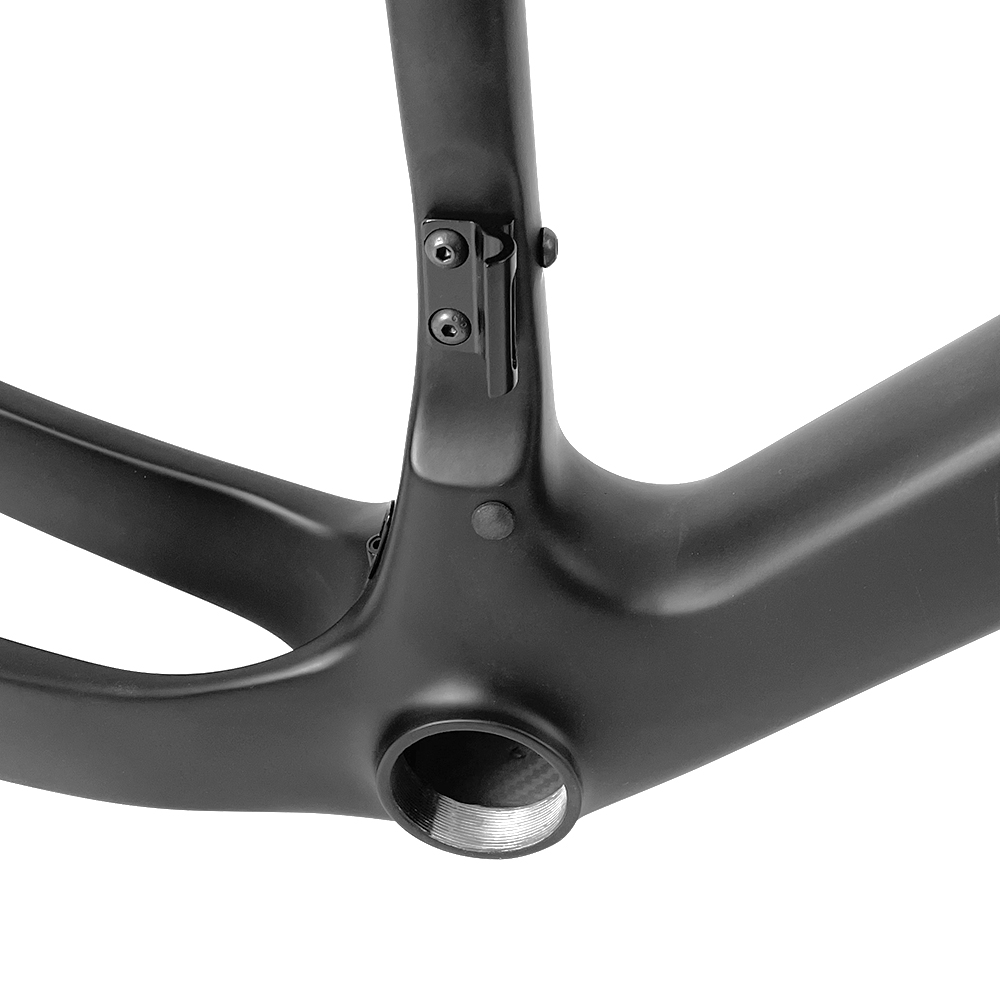

T47 Thread BB
⌀86.5 mm
Internal Cable Route
Easy to install cables and organise the cable route internally with no extra tools required.

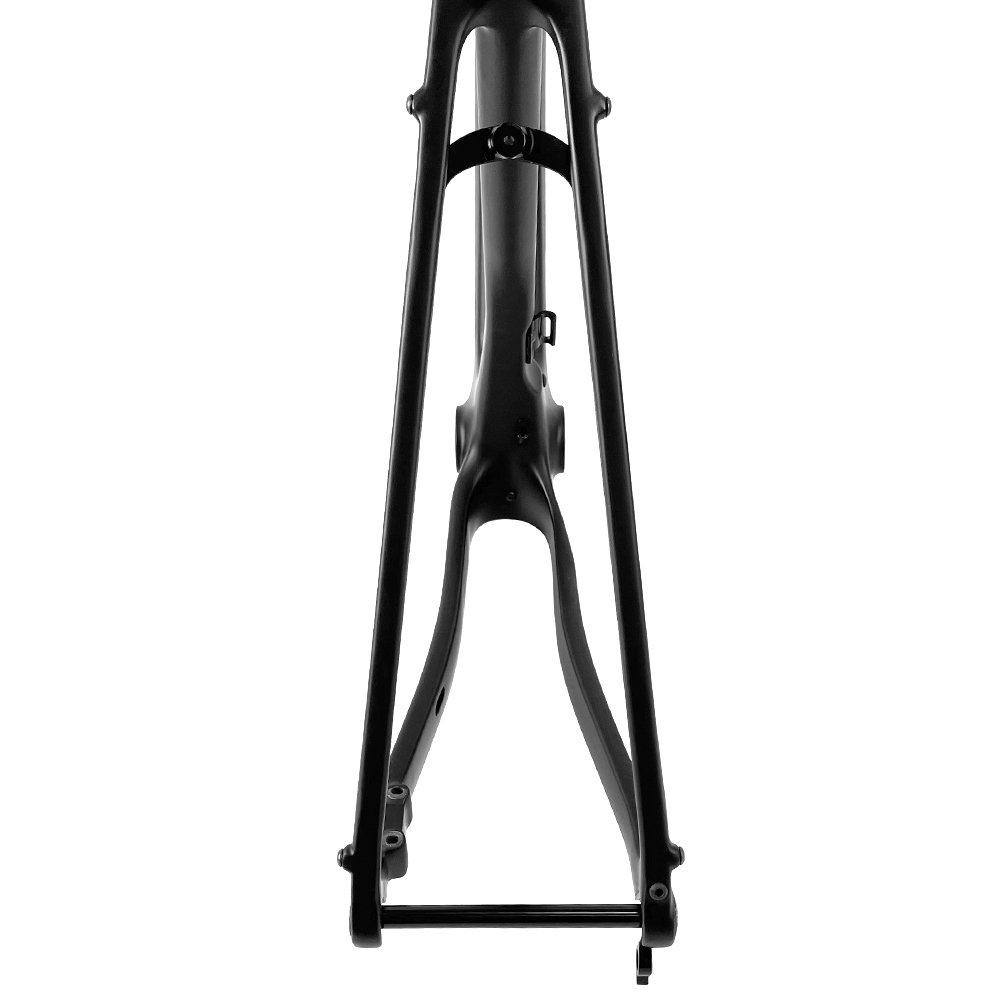

Universal Thru-Axle
Fork: 100*12mm
Rear: 142*12mm
Fork Flat Disc Mount
Rear Hangers: 100*12mm
Disc brake rotor: 140/160mm
Hole distance: 69mm
Max Tire: 700c*50mm
700c*50mm max tire to ride on most of roads with no problem

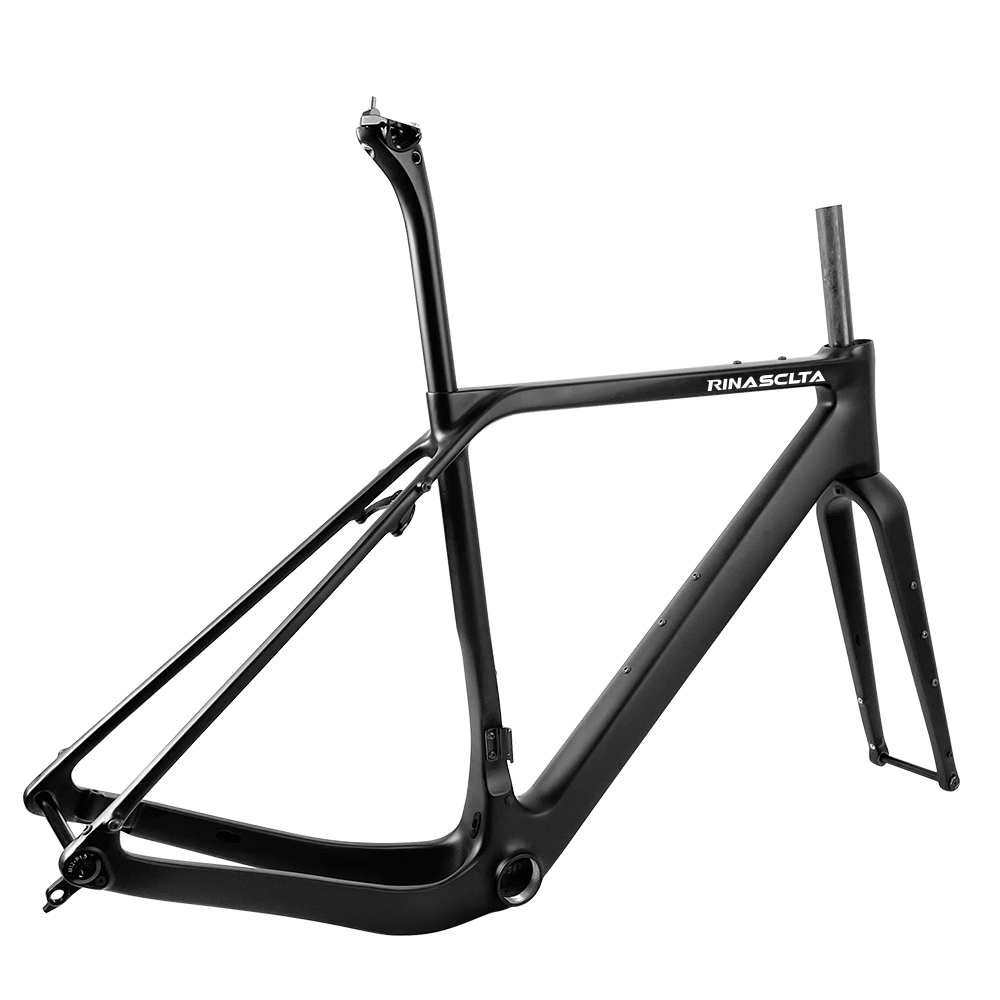

27.2mm seatpost
Standard 27.2mm

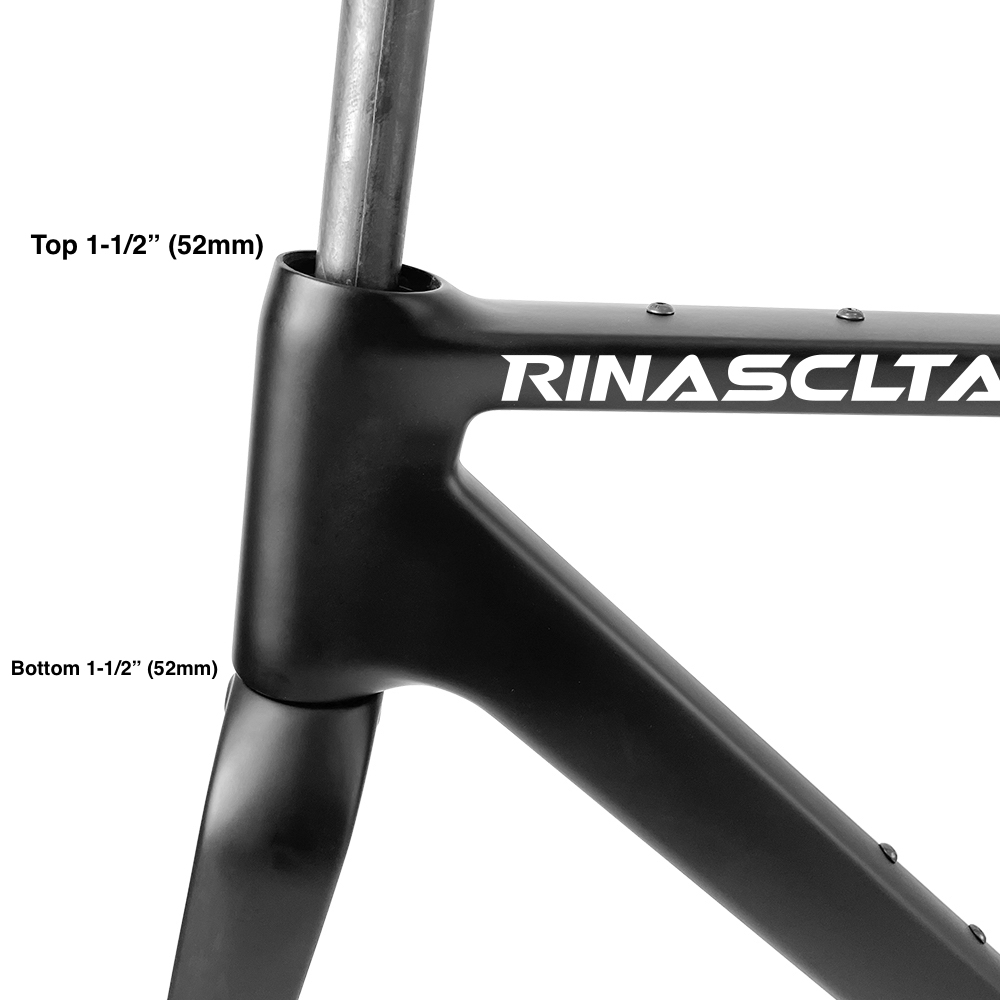

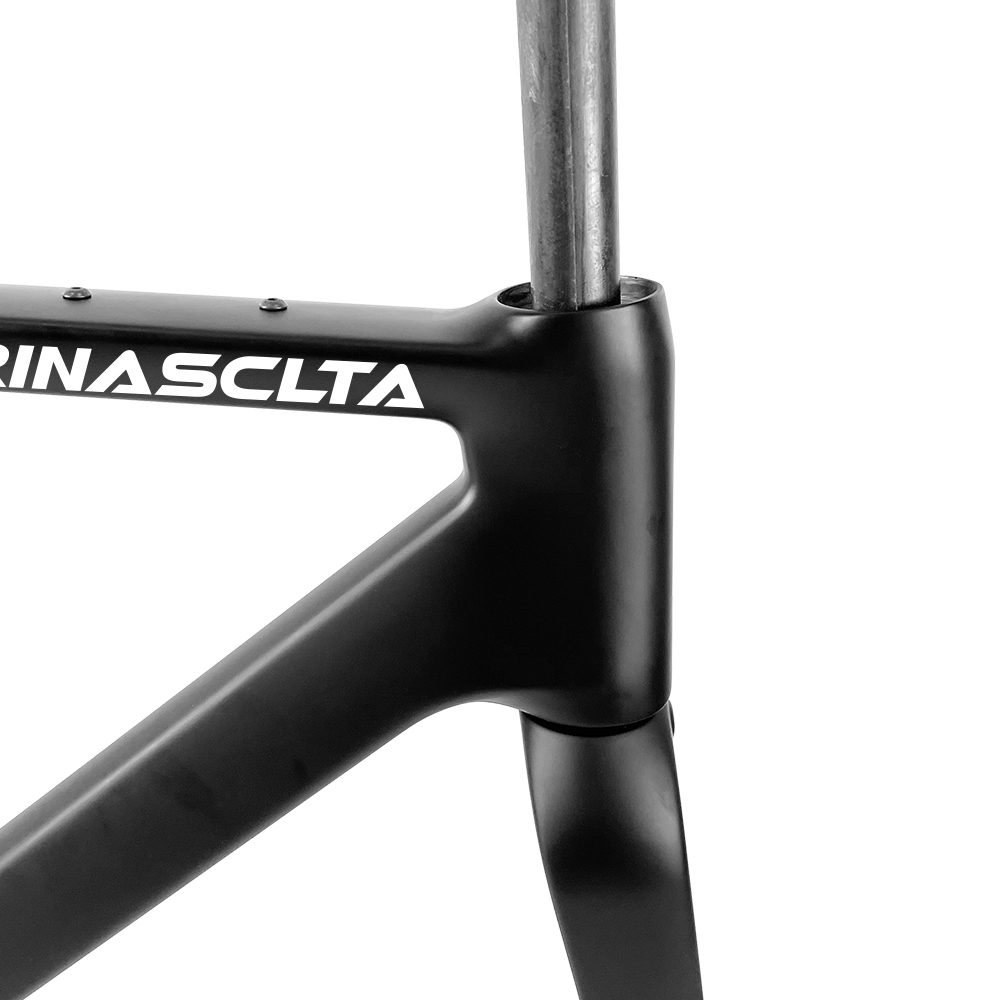

Straight Headtube
1-1/2″ to 1-1/2″ (52mm to 52mm)

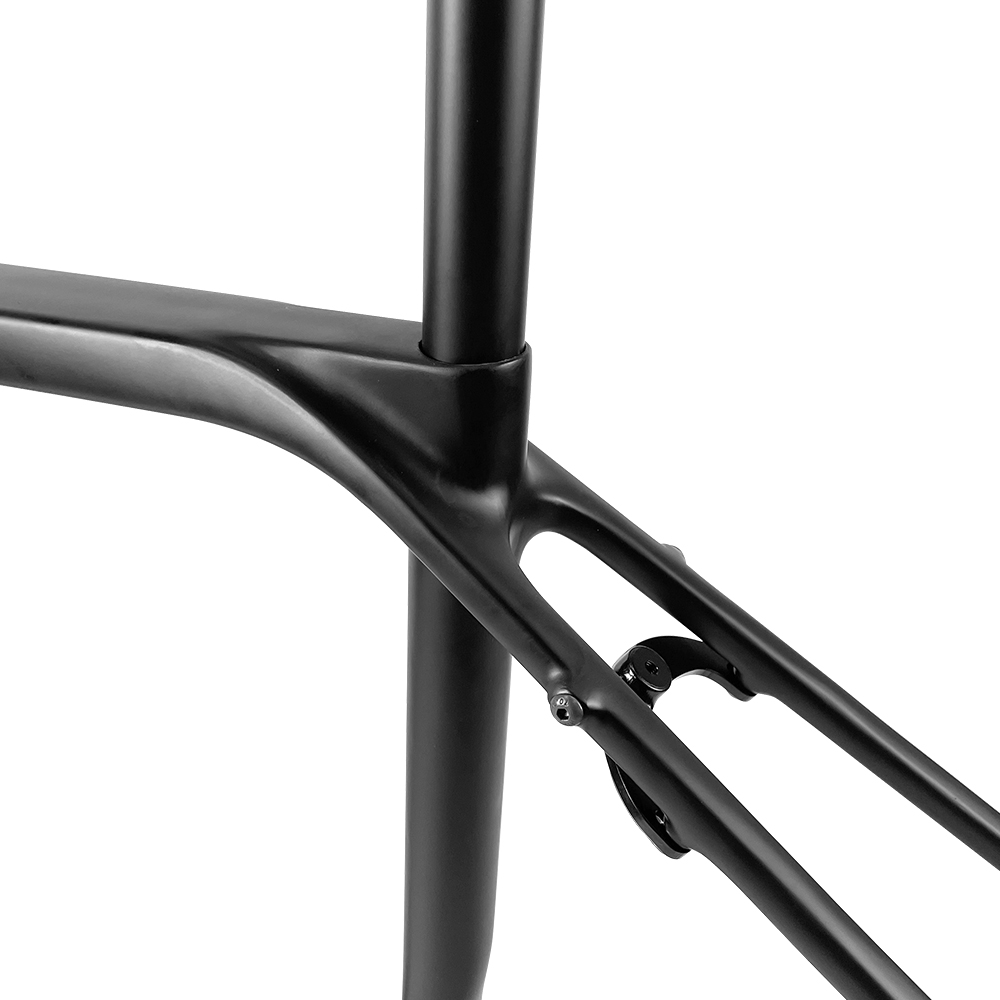

Extra Mount Holes
Extra mount holes for bike packing bags, easy to ride for long distance adventure.

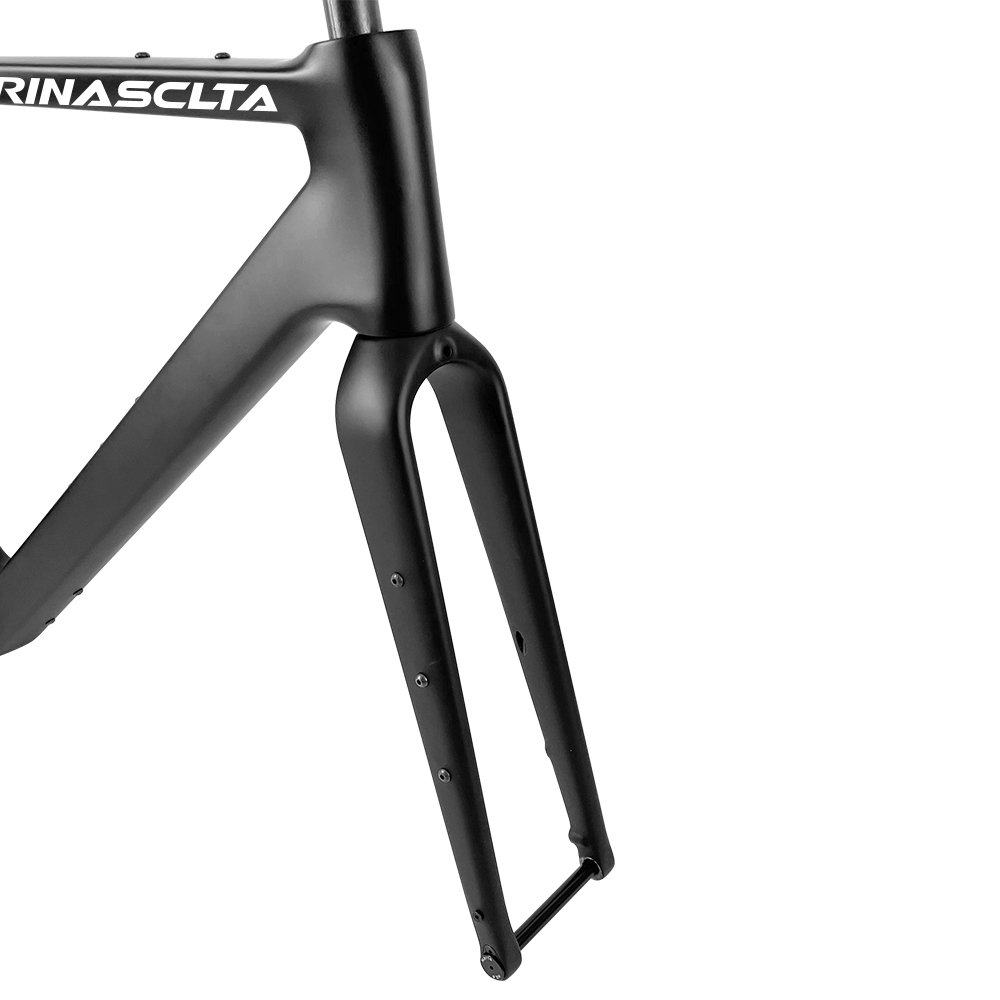

Extra Fork Mount Holes
Extra fork bag mount for backpacking
FRAMESET INTERNAL CABLE GUIDE
