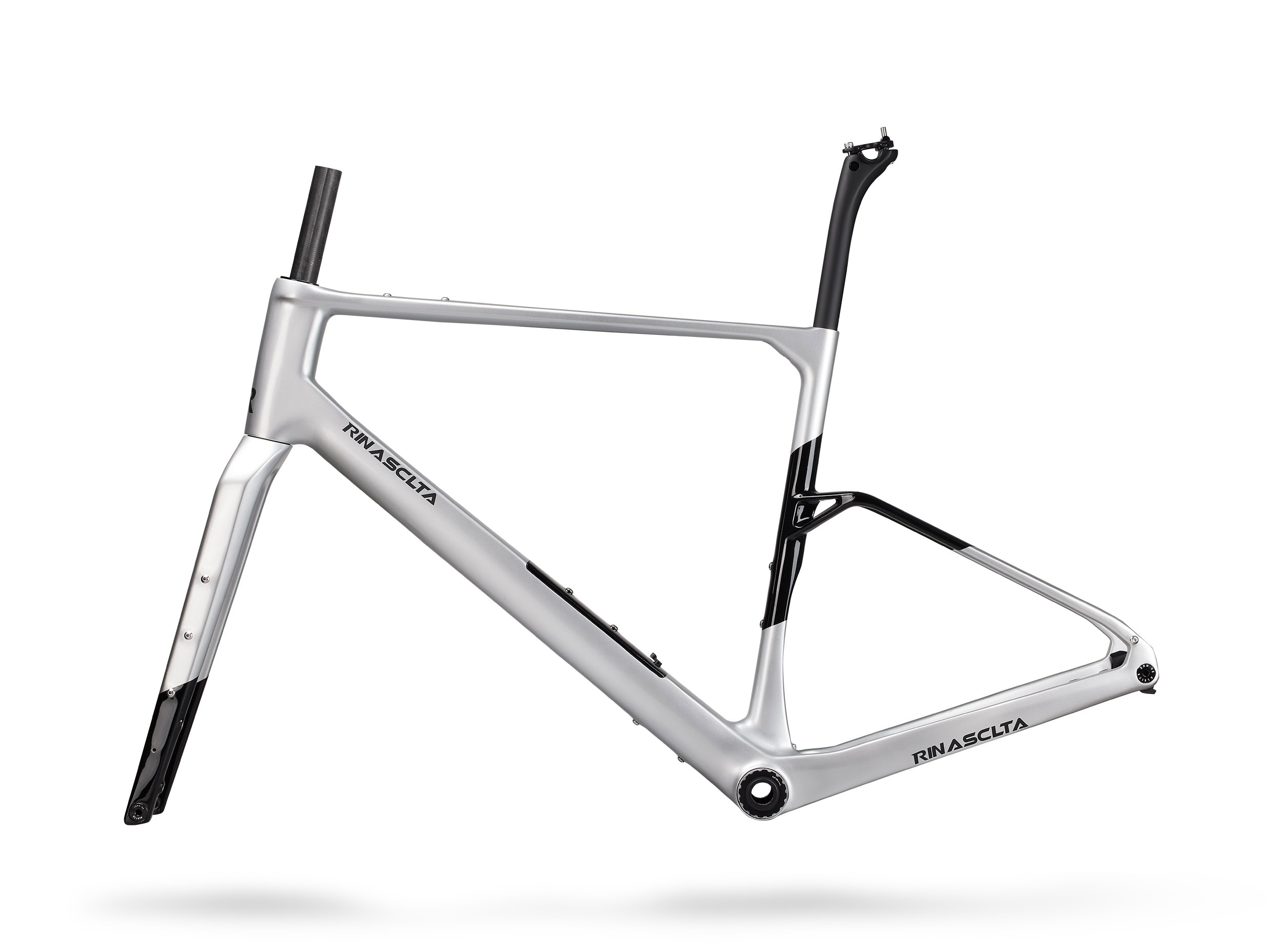

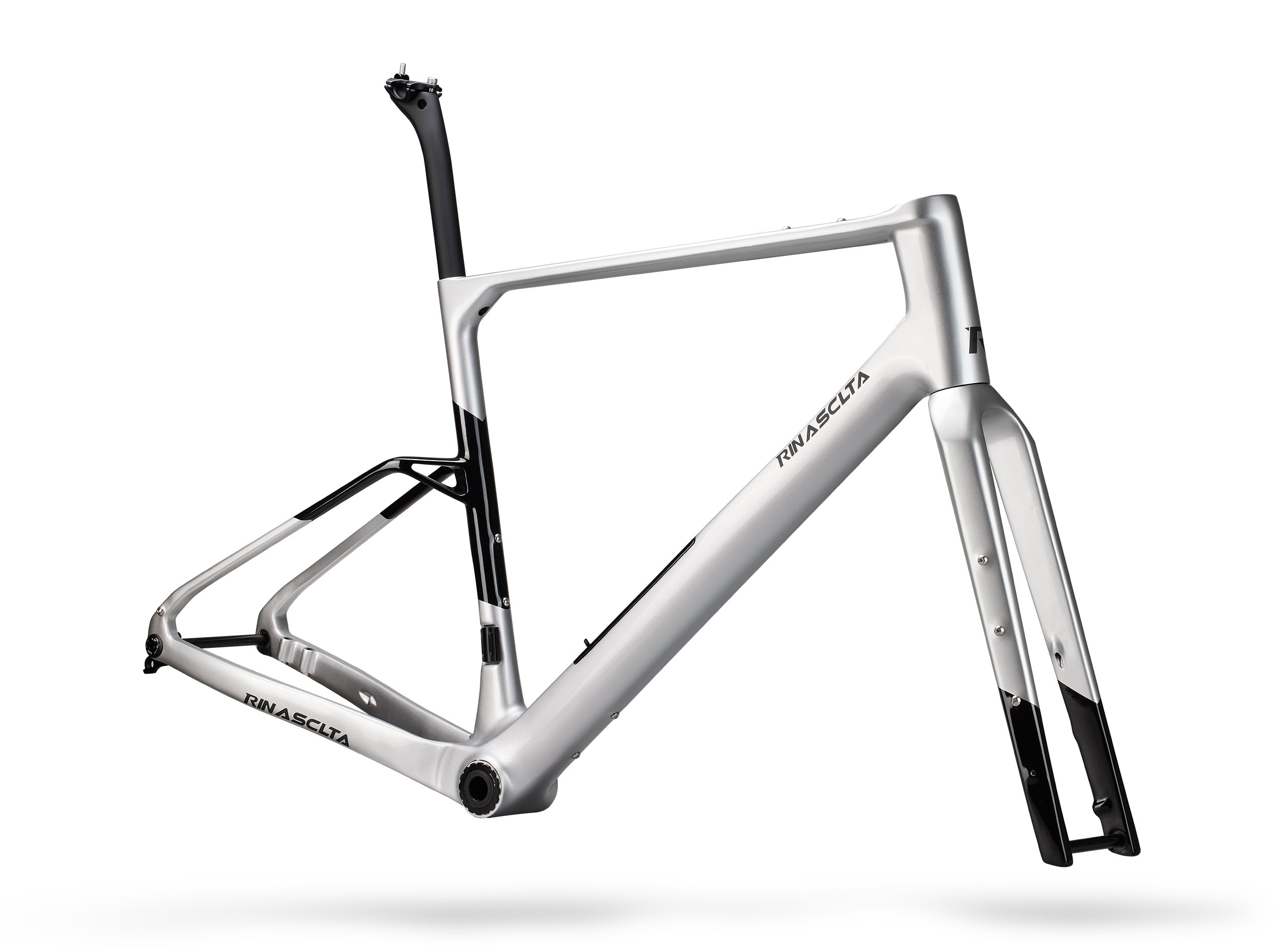

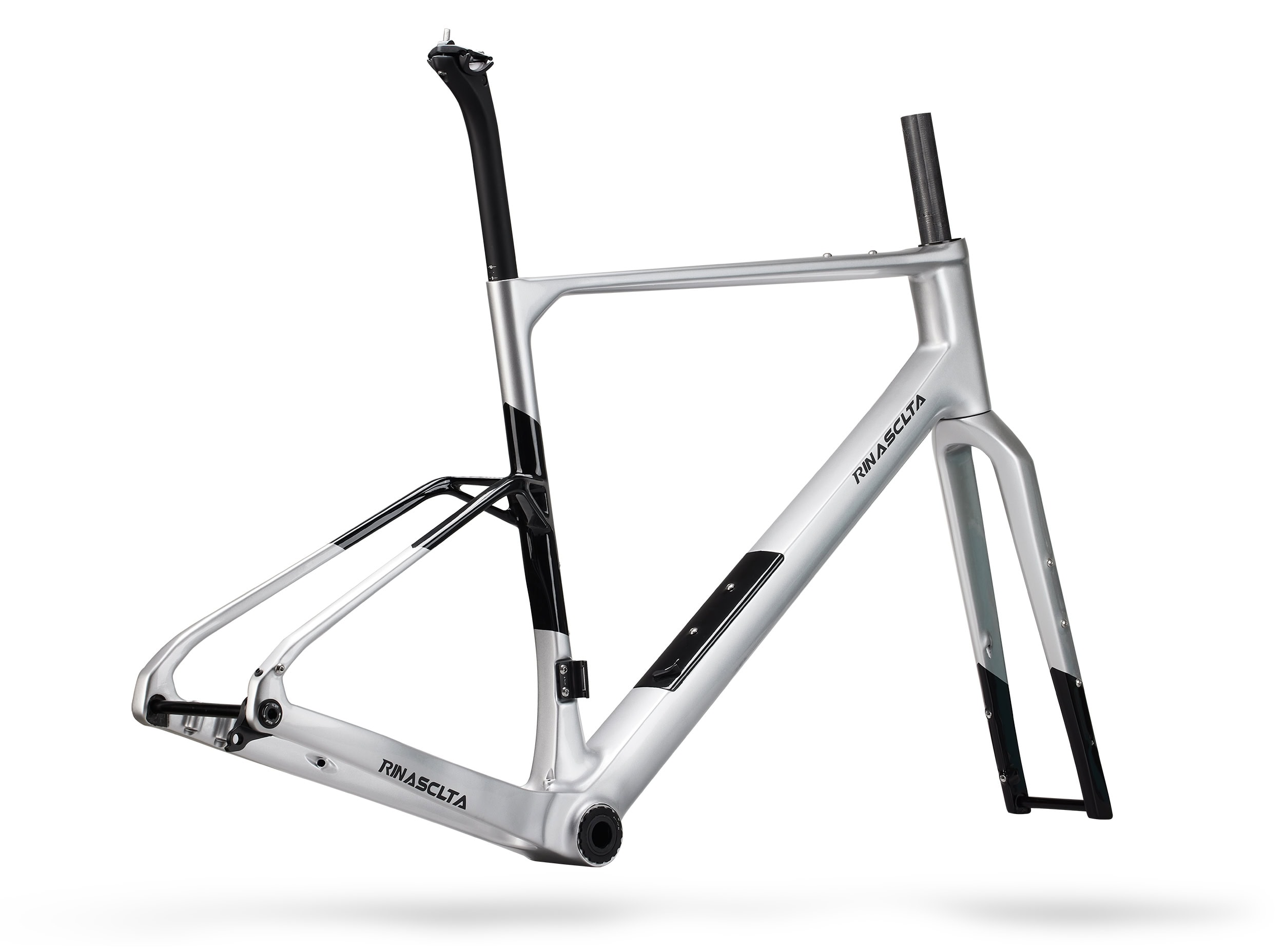

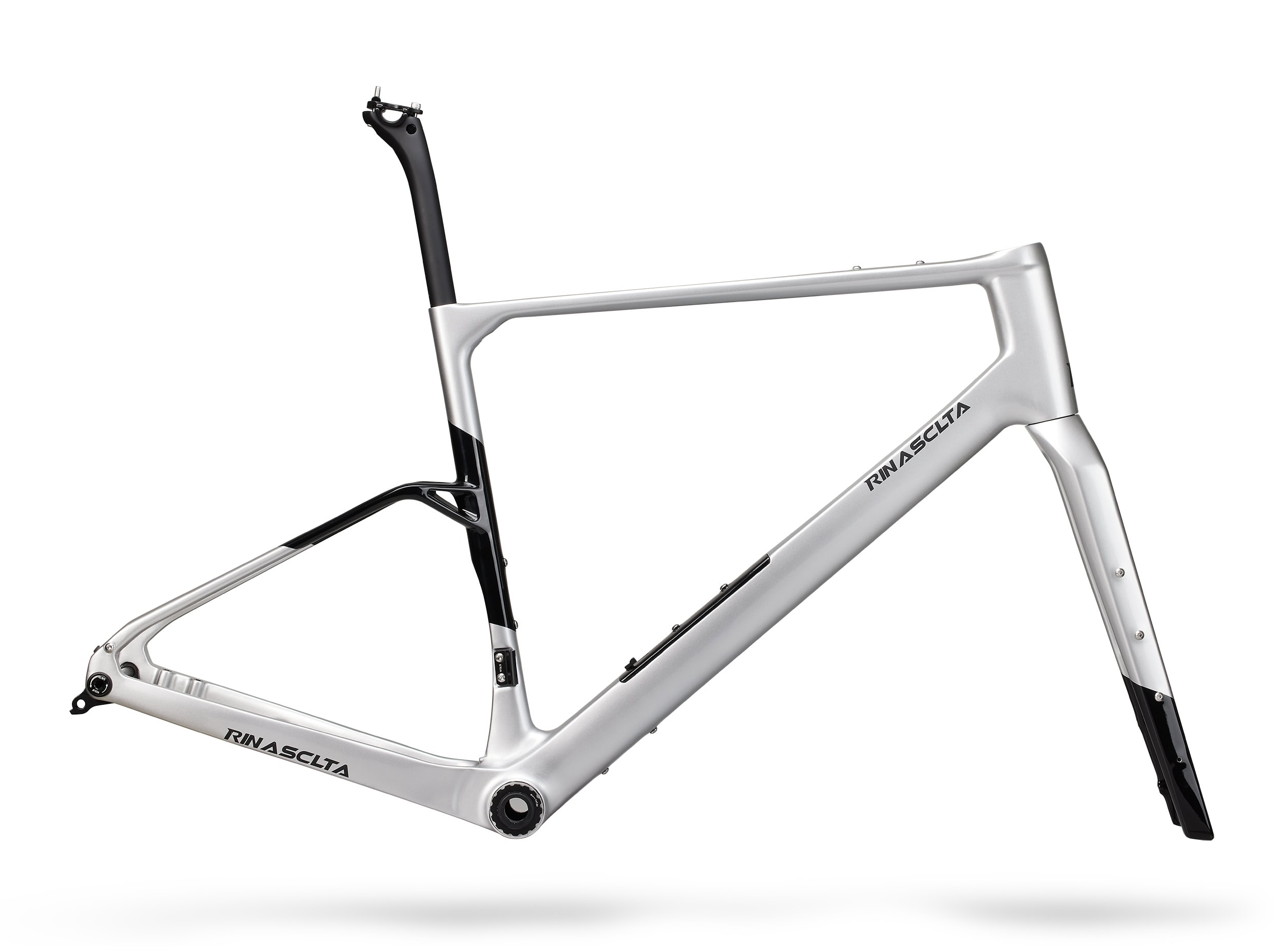

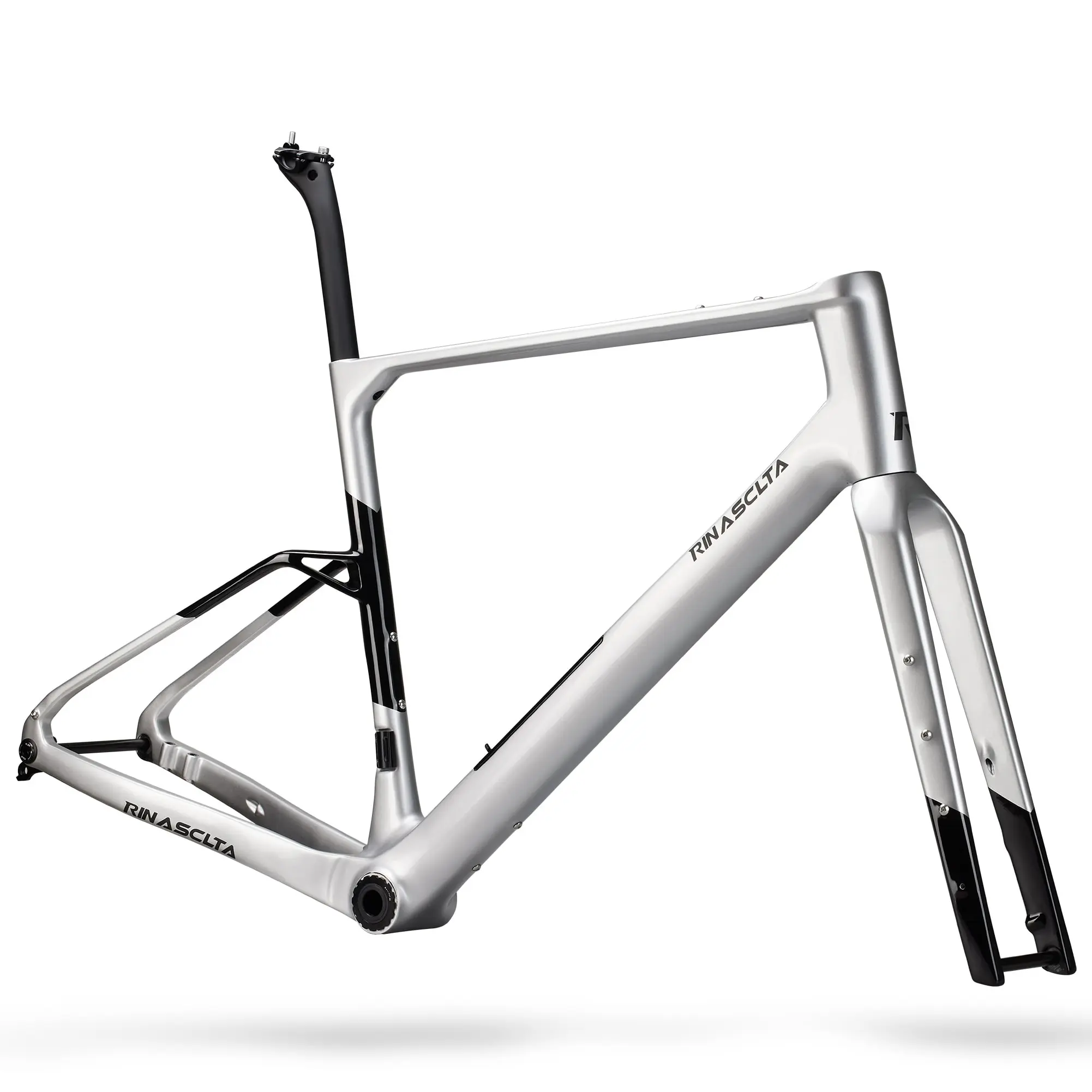

The Aerodynamic Gravel Bike Frame set with 700×50C Tire Clearance
Built for riders who refuse to choose between speed and capability, the Rinasclta Q-AERO GR combines aerodynamic efficiency with true gravel performance. Constructed from premium Toray T800 and T1000 carbon fiber, the frame features an innovative wind eye design, modern T47 threaded bottom bracket, and UDH compatibility for maximum reliability and future-proof drivetrain integration. With clearance for up to 700×50C tires, the Q-AERO GR is ready for gravel racing, bikepacking adventures, mixed-surface riding, and long-distance exploration.
1. Aerodynamic gravel frame design with optimized tube profiles and wind eye technology.
2. Premium Toray T800 + T1000 carbon fiber construction for an ideal balance of stiffness, strength, and weight.
3. Lightweight 1200g frame and 480g carbon fork for efficient acceleration and climbing performance.
4. T47 threaded bottom bracket for improved durability, serviceability, and drivetrain stability.
5. UDH-compatible derailleur hanger for compatibility with the latest drivetrain systems.
6. Clearance for up to 700×50C tires to tackle gravel, dirt roads, and rough terrain with confidence.
7. Fully compatible with both electronic Di2 and mechanical shifting systems.
8. 1-1/2” straight head tube design for precise steering and front-end stiffness.
9. Available in XS, S, M, L, and XL sizes to fit a wide range of riders.
The Rinasclta Q-AERO GR frameset includes the carbon frame, carbon fork, carbon seatpost, headset, seatpost clamp, thru axles, and derailleur hanger, providing everything needed to build a fast, capable, and modern gravel bike.
Frame weight(UD black paint):
49cm: 1180g +/- 20g
52cm: 1200g +/- 20g
54cm: 1220g +/- 20g
56cm: 1240g +/- 20g
58cm: 1260g +/- 20g
TECHNICAL SPECIFICATIONS
| Carbon material: | T800+T1000 Toray Carbon Fiber |
| Frame type | Gravel Aerodynamic Disc Brake with wind eye design |
| Product includes: | Frame, fork, seatpost, headset, seatpost clamp, thru axle, hangers. |
| Head tube: | 1-1/2″ to 1-1/2″, straight tube |
| Frame weight: | 1200 g +/- 20g (S size with UD black paint) |
| Bottom Bracket: | T47 Thread (86.5 mm) |
| Derailleur Hanger | UDH |
| Fork weight: | 480 +/- 20g |
| Seatpost weight: | 190 +/- 20g |
| Seatpost diameter | 27.2 mm |
| Thru axle: | Fork(100*12mm), rear(142*12mm) |
| Max tire size: | 700*50C |
| Frame size: | 49/52/54/56/58cm |
| Shift system: | Di2/mechanical compatible |
| Warranty | 2 years |
RINASCLTA Q-AERO GR GRAVEL BIKE FRAMESET FEATURES
GT Silver Custom Paint
Custom your own paint for special look
WindEye AirFlow Tube
Trending airflow seattube stay for max airflow

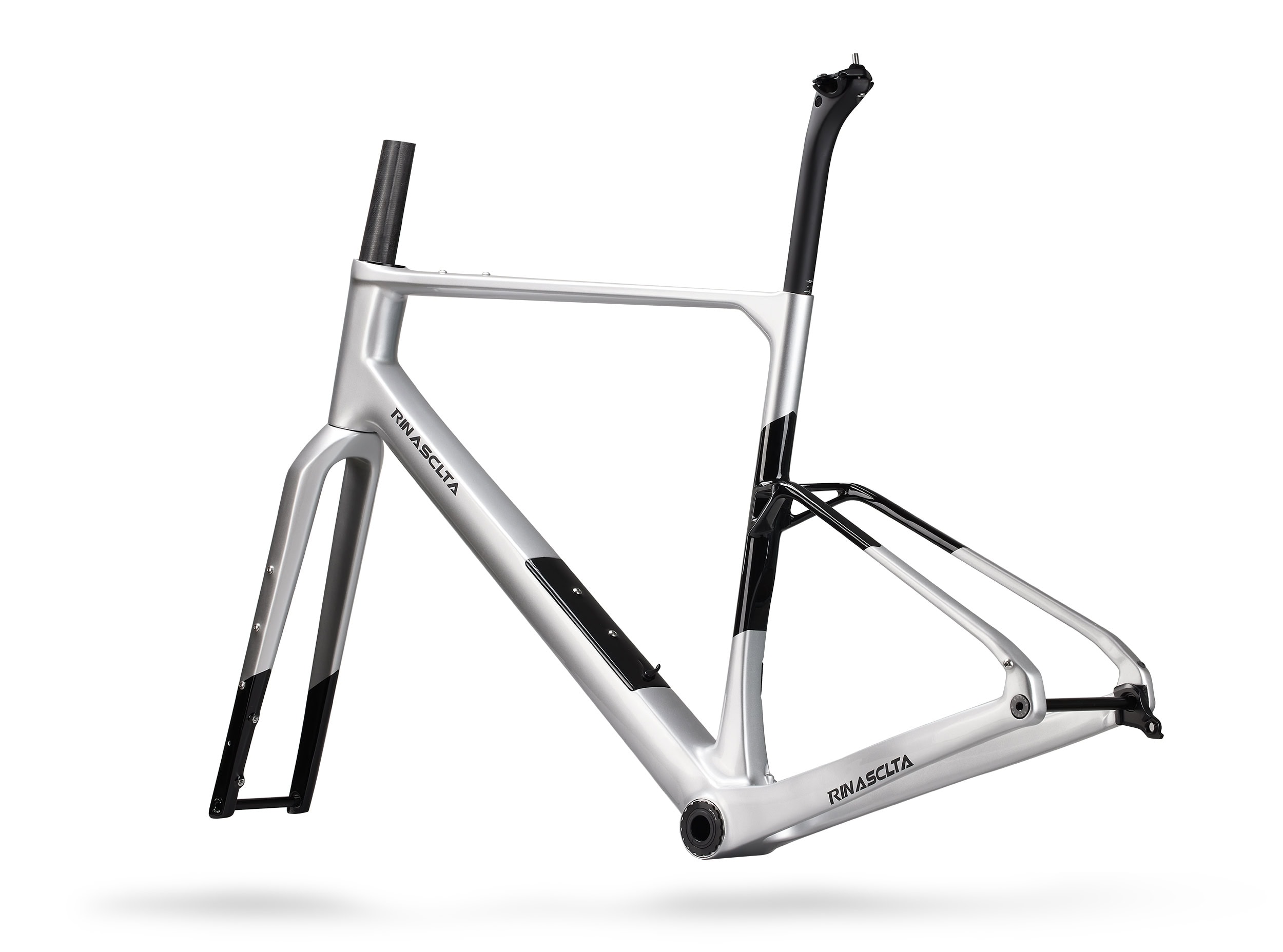

Downtube Storage
Extra storage in downtube for max usage and less frame bags
T47 Thread BB
T47 86.5mm thread bottom bracket
Straight Tube
1-1/2″ to 1-1/2″

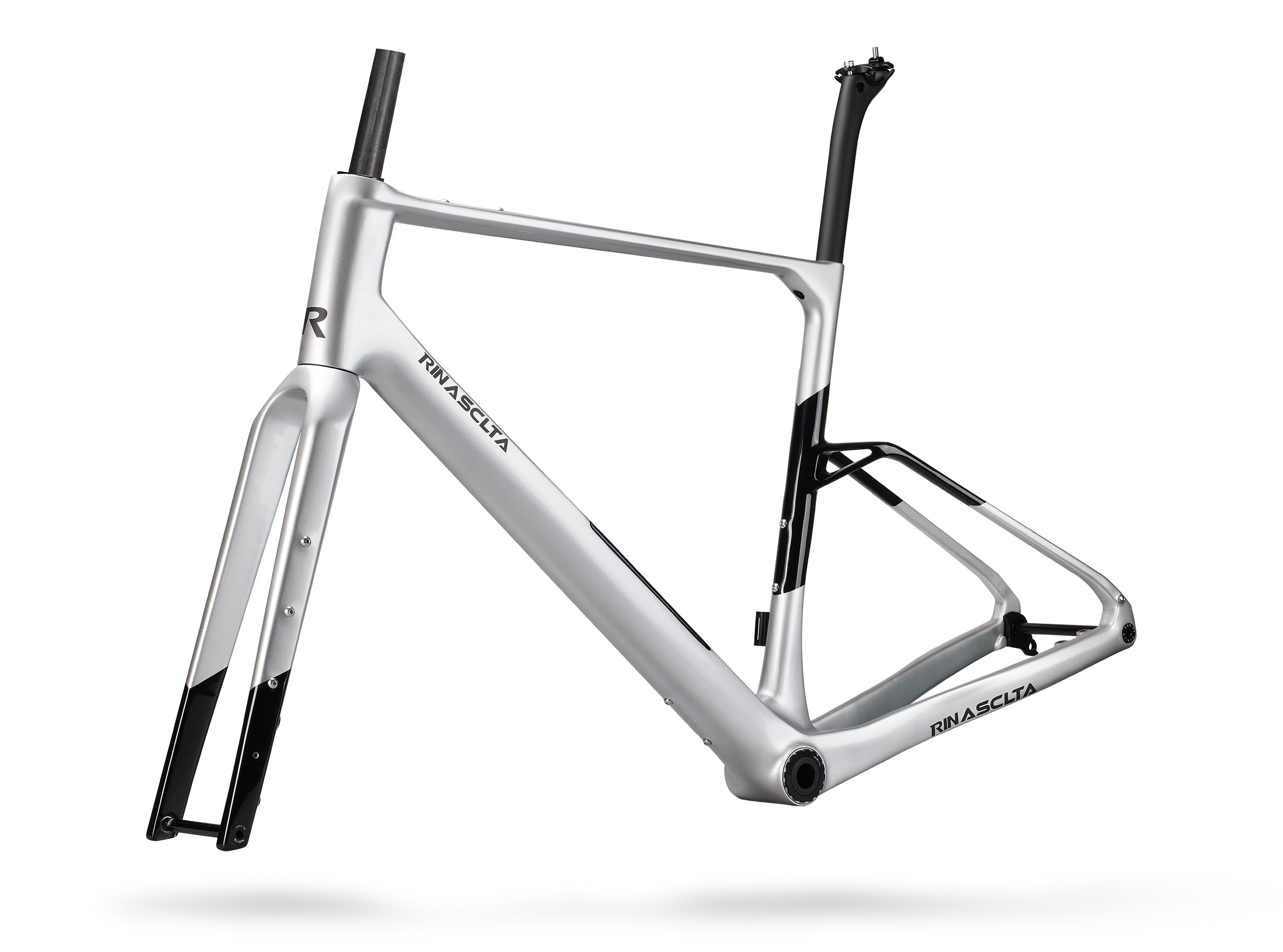

Max Tire Size
700*50c
AERODYNAMC Geometry
Aero geometry combined with gravel bike design
UDH Derailleur Hanger
Universal Derailleur hanger system, modern and strong to fit most of the groupset
Geometry
Internal Cable Route Guide
What's in the Package?
1 set frameset(frame, fork, seat post)
1 set headset
1 set Bottom bracket transfer
1 piece seat post clamp
1 piece UDH hanger
1 piece fork thru axle
1 piece frame thru axle
