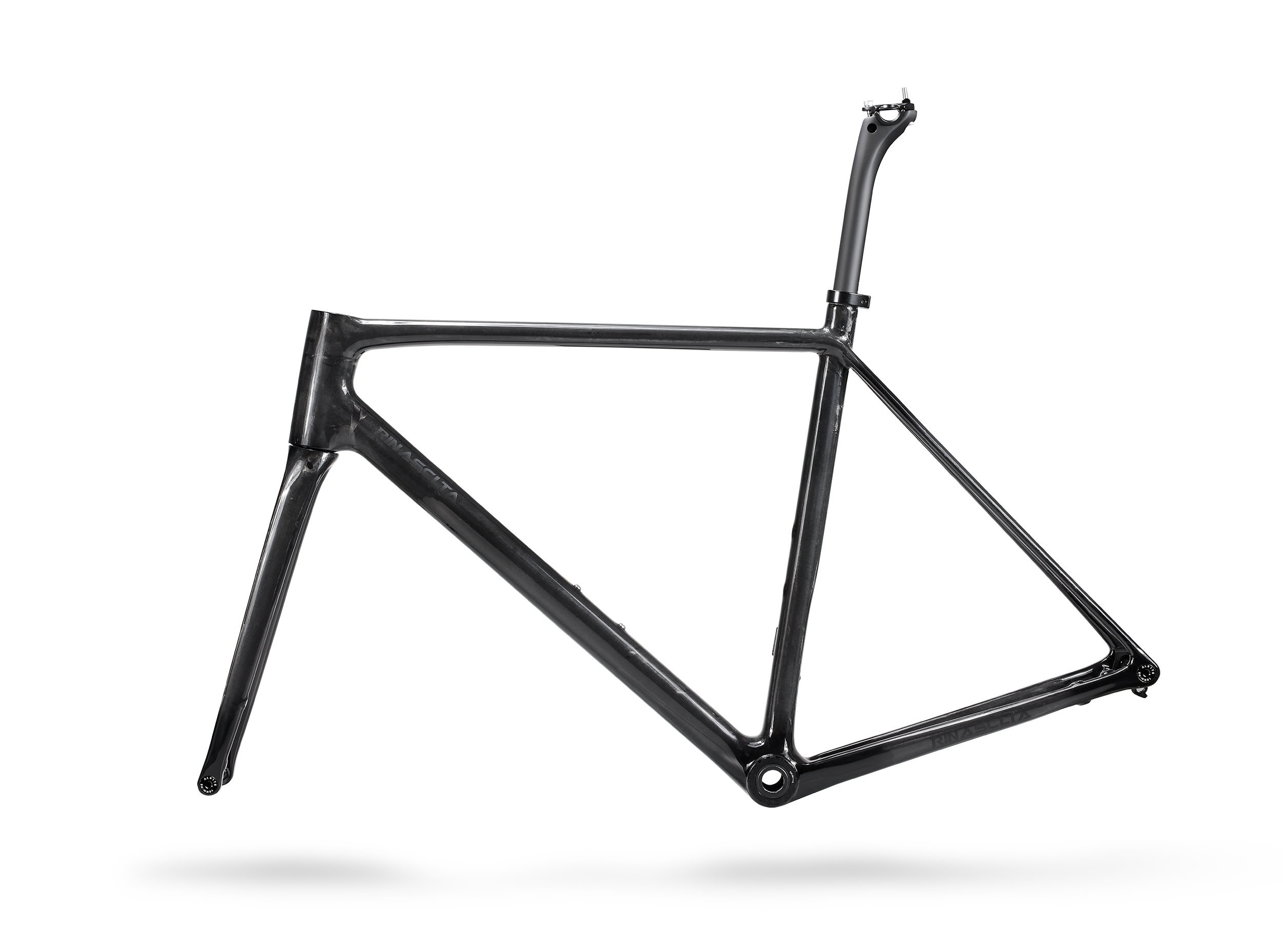

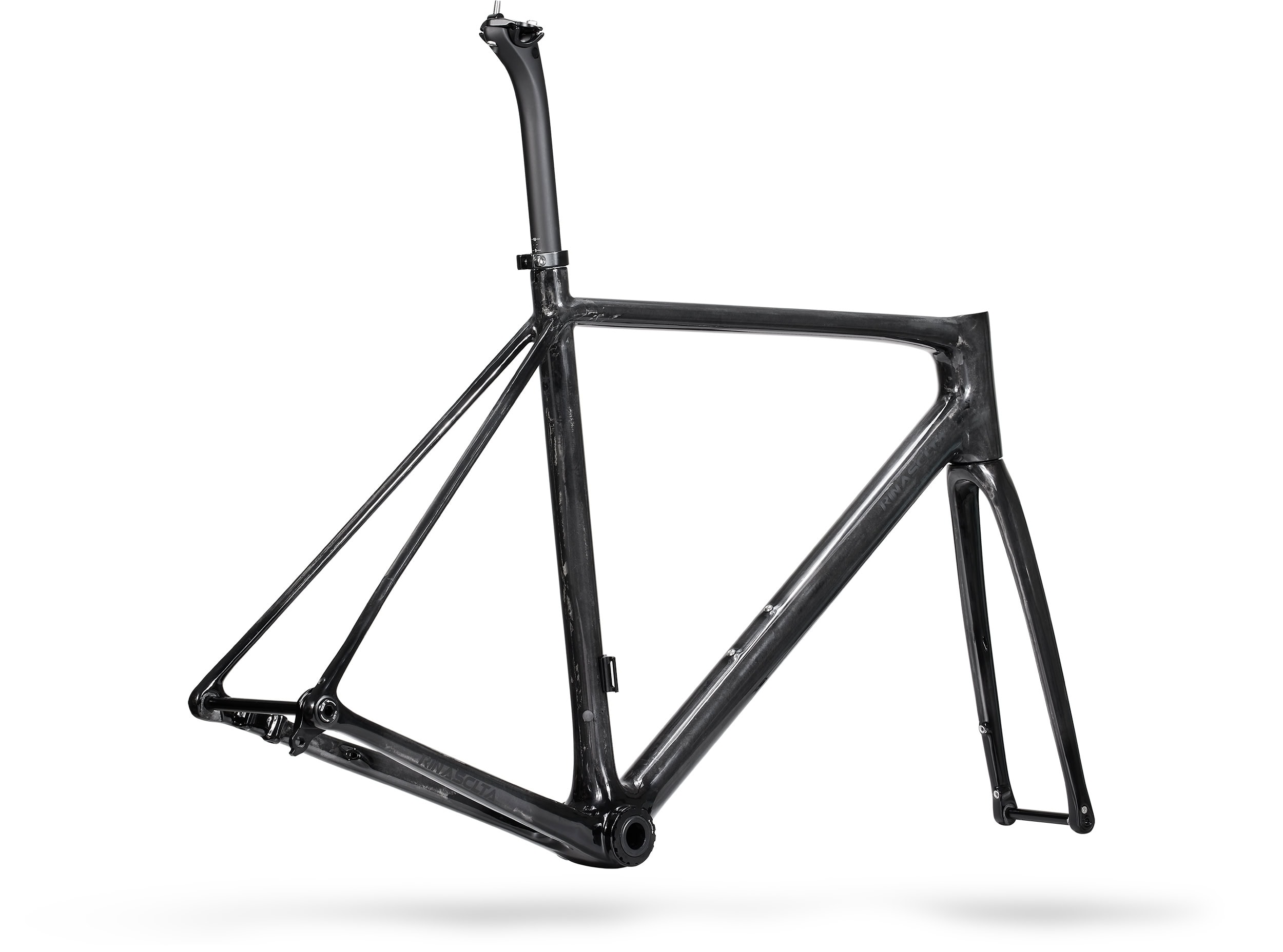

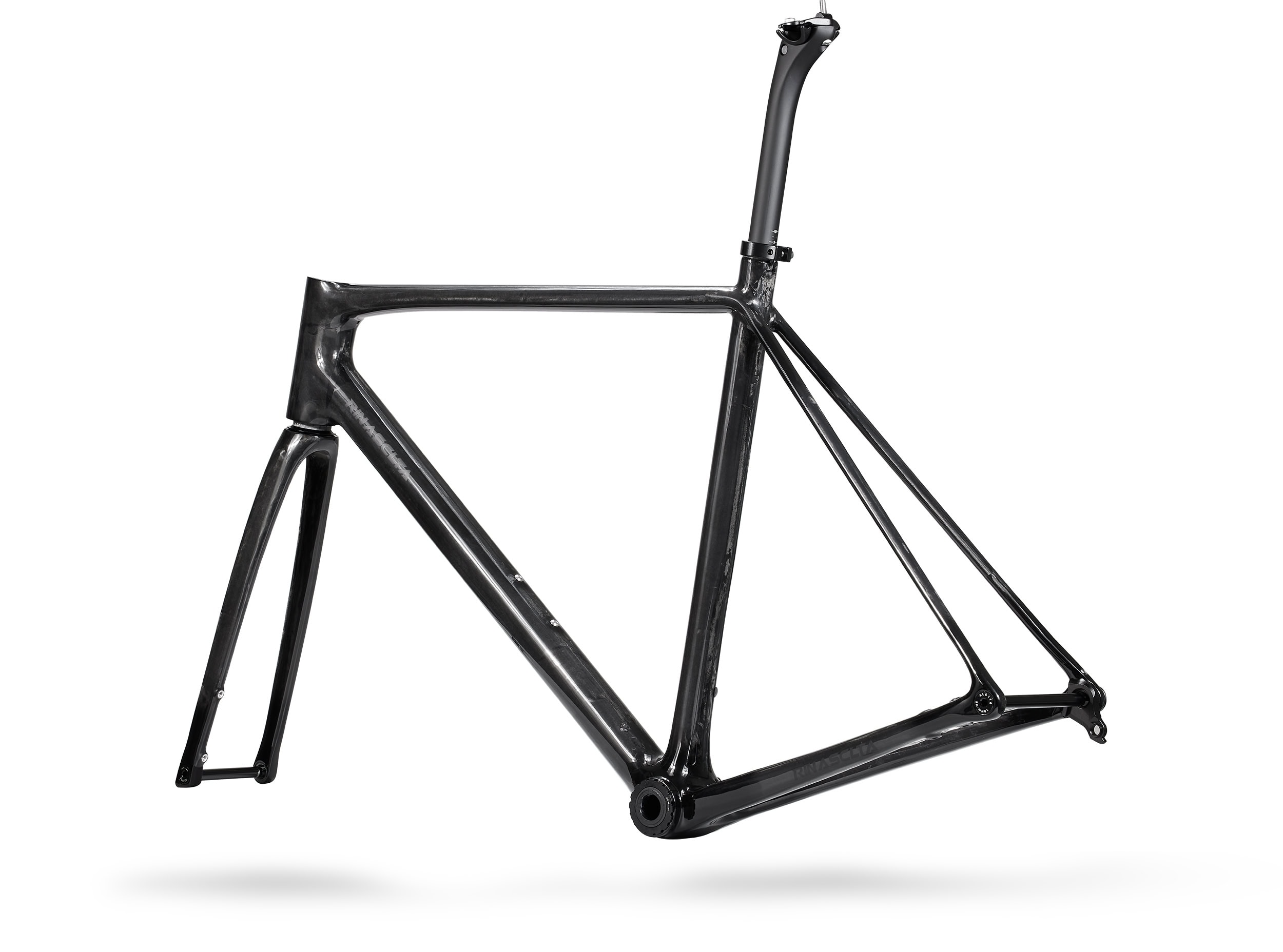

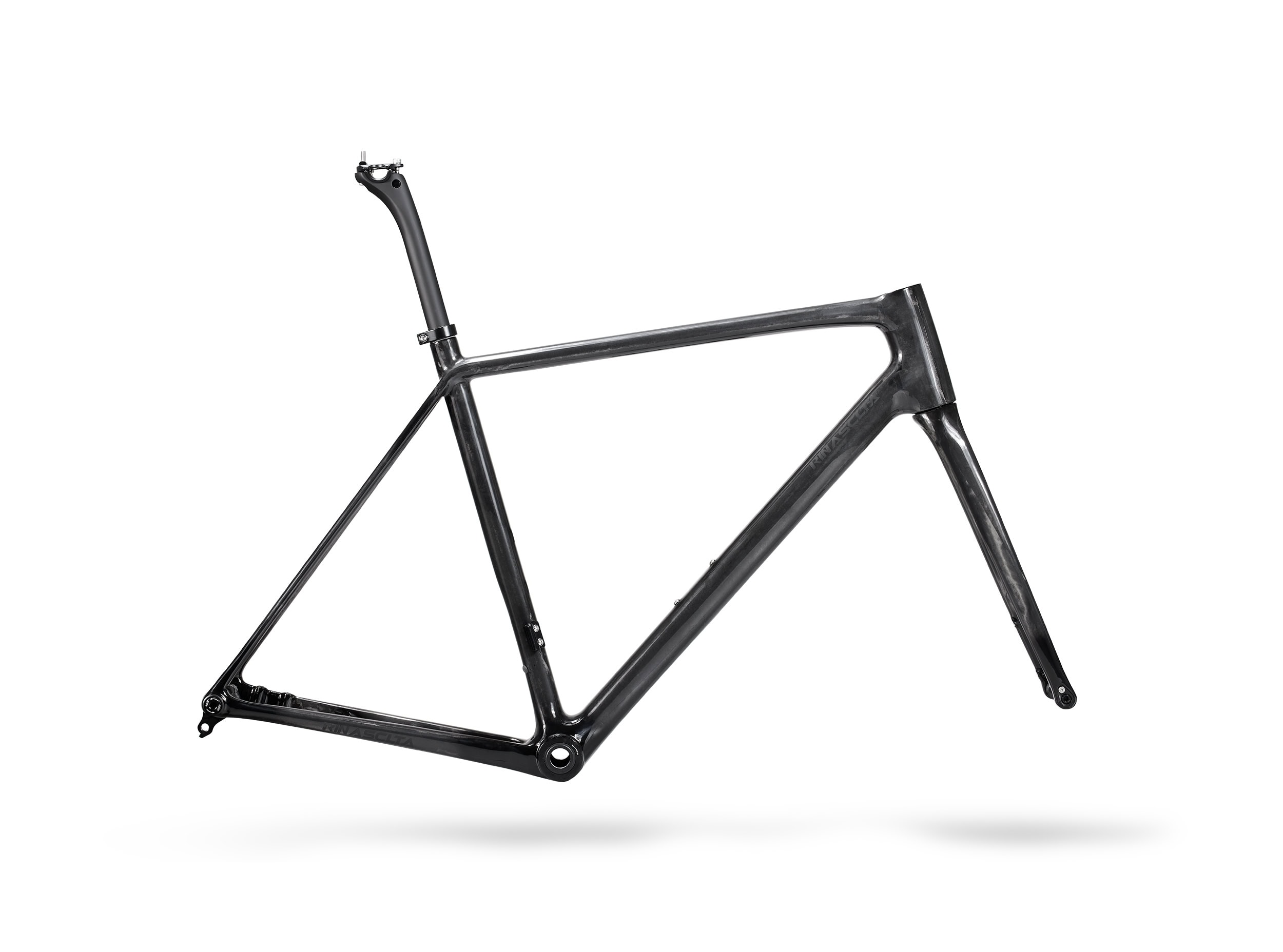

The Lightweight Endurance Road Bike Frameset with T47 Bottom Bracket and UDH Compatibility
Designed for riders who demand low weight, long-distance comfort, and modern component compatibility, the Rinasclta SL Classic combines advanced Toray T800 and T1000 carbon fiber construction with a refined endurance geometry. With a frame weight starting at just 790g, clearance for 700×32C tires, and a reliable T47 threaded bottom bracket, it delivers efficient power transfer, confident handling, and all-day riding comfort.
1. Lightweight Toray T800 + T1000 carbon construction with frame weight from 790g.
2. Endurance-focused geometry for long rides, climbing efficiency, and stable handling.
3. T47 threaded bottom bracket for improved durability, serviceability, and stiffness.
4. UDH-compatible rear derailleur hanger for modern drivetrain compatibility.
5. Clearance for up to 700×32C tires for increased comfort and versatility.
6. Compatible with both Di2 electronic and mechanical shifting systems.
7. Includes frame, fork, seatpost, headset, seatpost clamp, thru axles, and derailleur hanger.
The Rinasclta SL Classic frameset is available in 46/49/52/54/56/58cm sizes and includes a lightweight carbon fork and 27.2mm carbon seatpost. Check the frame geometry chart below to find the ideal size for your riding position and performance goals.
Frame weight( With UD black paint)
46cm: 790g +/- 20g
49cm: 810g +/- 20g
52cm: 830g +/- 20g
54cm: 860g +/- 20g
56cm: 870g +/- 20g
58cm: 900g +/- 20g
TECHNICAL SPECIFICATIONS
| Carbon material: | T800+T1000 Toray Carbon Fiber |
| Frame type | Endurance lightweight disc brake |
| Product includes: | Frame, fork, seatpost, headset, seatpost clamp, thru axle, hangers. |
| Head tube: | 1-1/2″ to 1-1/2″, straight tube |
| Frame weight: | 790g +/- 20g (46cm with UD black paint) |
| Bottom Bracket: | T47 Thread (86.5 mm) |
| Derailleur Hanger | UDH |
| Fork weight: | 370 +/- 20g |
| Seatpost weight: | 190 +/- 20g |
| Seatpost diameter | 27.2 mm |
| Thru axle: | Fork(100*12mm), rear(142*12mm) |
| Max tire size: | 700*32C |
| Frame size: | 49/52/54/56/58cm |
| Handlebar clamp diametter | 28.6 mm |
| Shift system: | Di2/mechanical compatible |
| Warranty | 2 years |
RINASCLTA SL CLASSIC ROAD BIKE FRAMESET FEATURES

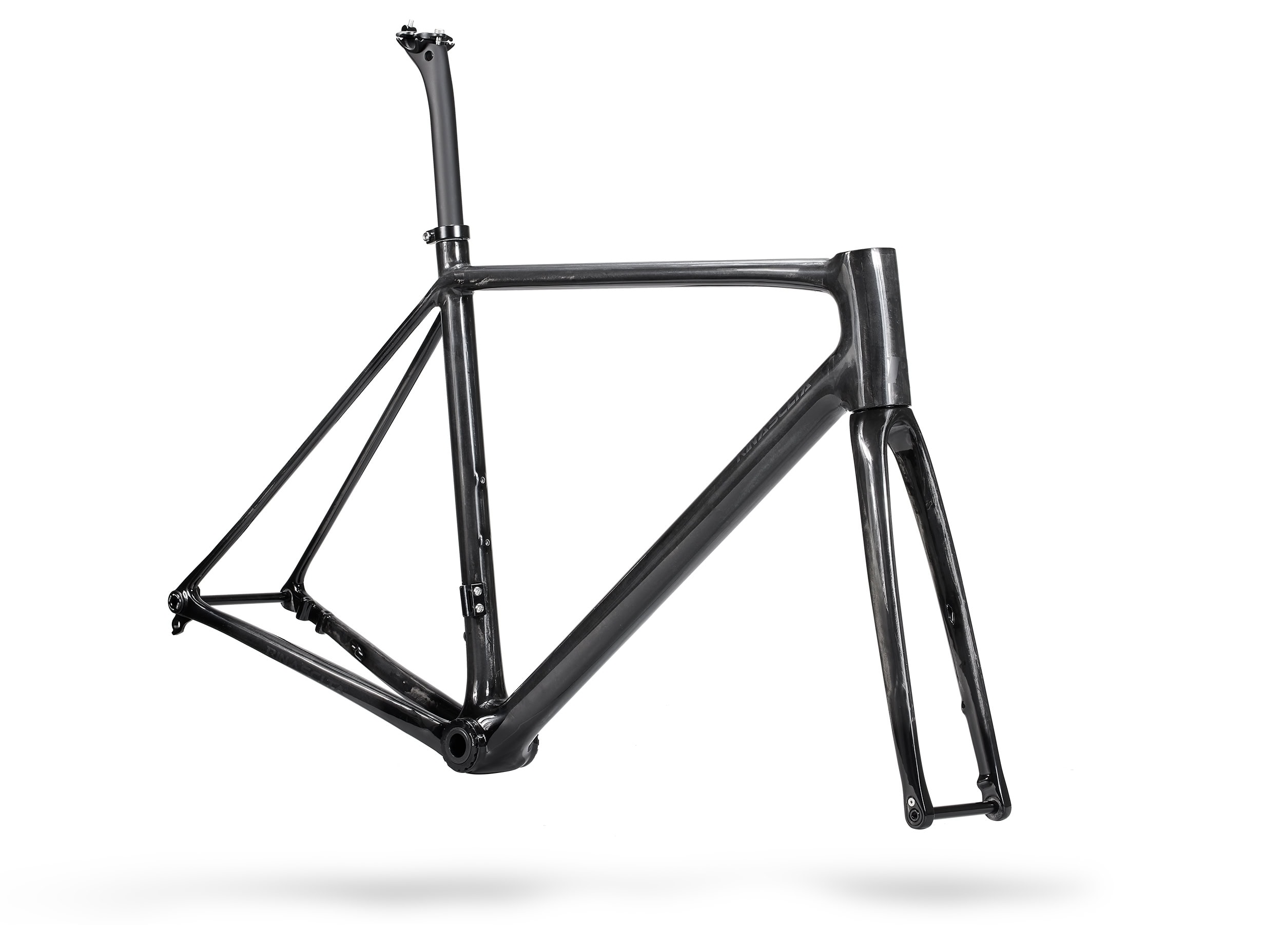

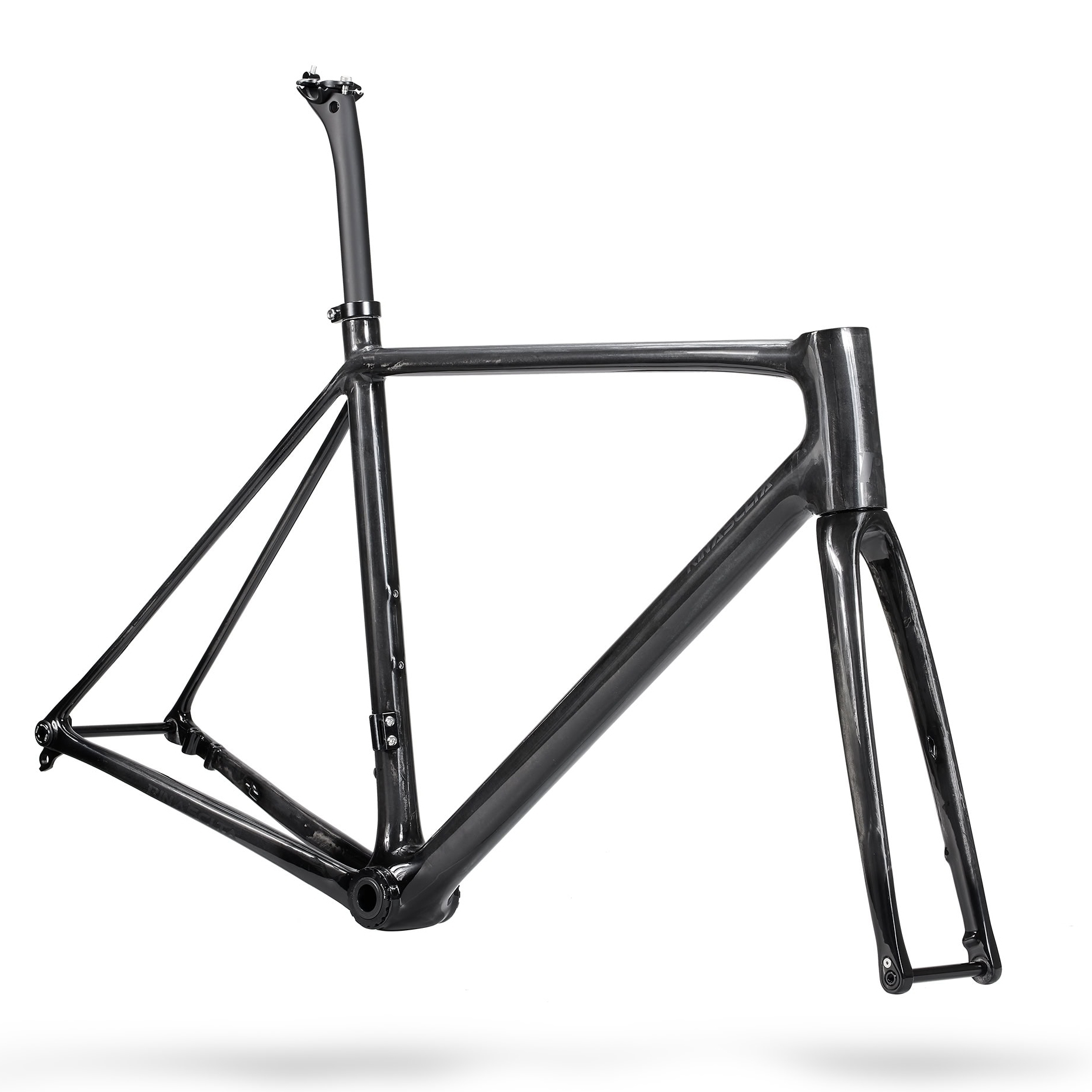

Classic Raw Carbon Finish
Get the original carbon texture, classic and lightweight
Classic Seatpost Clamp
Standard 27.2 mm seatpost, easy to install and adjust
Flat Disc Amount
142*12mm Rear Hangers. Easy to install with 140/160mm disc brake rotor
T47 Thread BB
T47 86.5mm thread bottom bracket

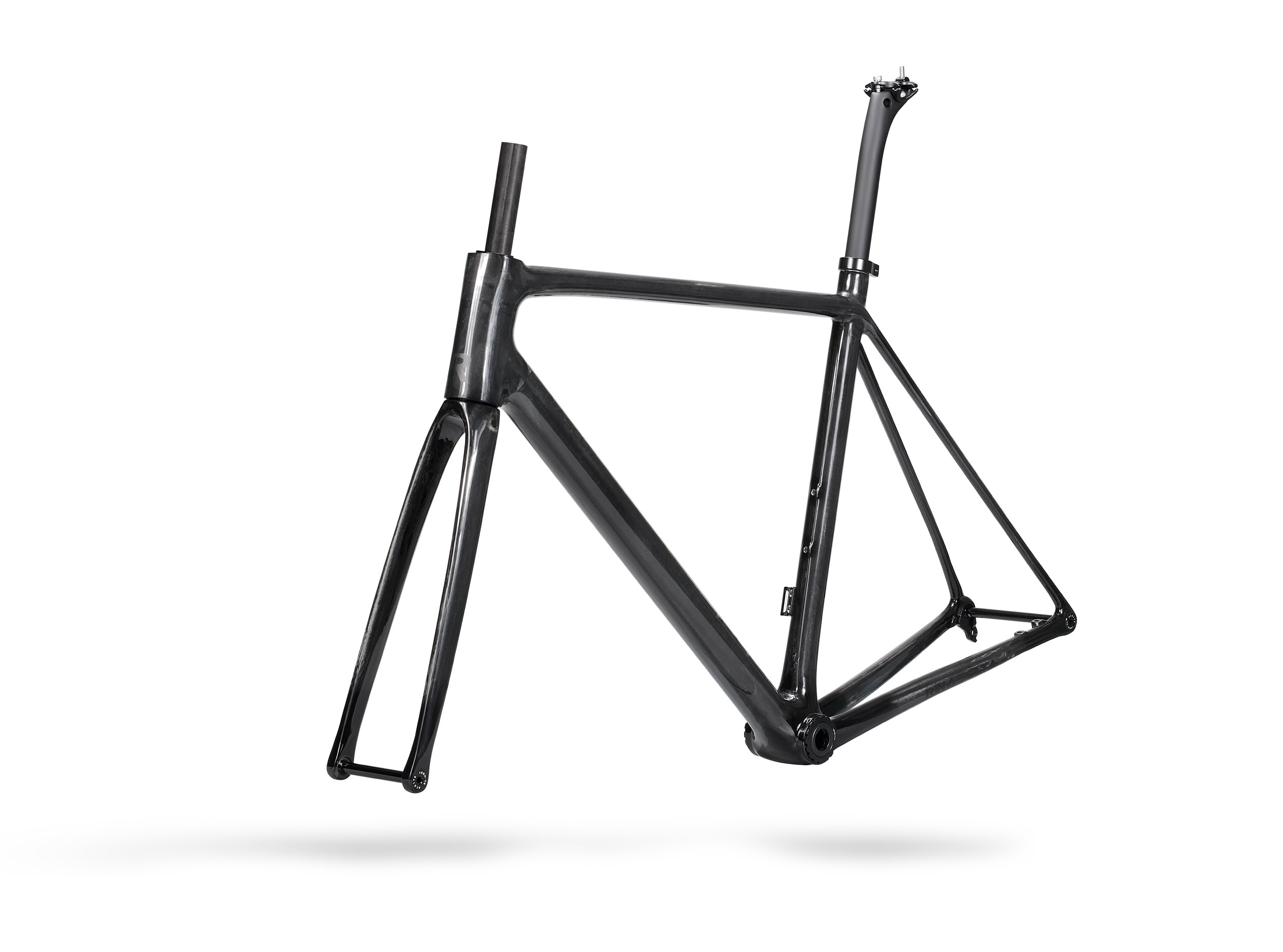

Straight Tube
 1-1/2″ to 1-1/2″Â
Max Tire Size
700*32c
Classic Geometry
Endurance geometry for max comfort
UDH Derailleur Hanger
Universal Derailleur hanger system, modern and strong to fit most of the groupset
Geometry
Internal Cable Route Guide
What's in the Package?
1 set frameset(frame, fork, seat post)
1 set headset
1 set Bottom bracket transfer
1 piece seat post clamp
1 piece UDH hanger
1 piece fork thru axle
1 piece frame thru axle
