Bike suspension travel: definition, types and how much do you need

What is suspension travel on the bike?

Suspension travel on a bike is the maximum distance the front fork or rear shock can compress under load, typically measured in millimeters (e.g., 100 mm, 150 mm, 200 mm), and it determines how much impact the suspension system can absorb during riding. First introduced in the late 1980s and early 1990s by pioneers like RockShox in the USA and Marzocchi in Italy, suspension travel emerged to help mountain bikers maintain control, traction, and comfort on rough, technical trails by absorbing bumps, drops, and vibration. The term “travel” refers to how far the suspension components can physically move or travel during compression, and it’s critical for tuning a bike’s performance, geometry, and handling characteristics across different disciplines—from XC (80–120 mm) to enduro (140–170 mm) and downhill (180–220 mm).

What is the fork suspension travel on the bike?

Suspension fork travel on a bike is the maximum distance the front suspension fork can compress to absorb shocks and impacts, typically measured in millimeters (e.g., 100 mm for XC, 160 mm for enduro, 200 mm for downhill), and it directly affects how the bike handles rough terrain, braking, and cornering forces. Developed in the late 1980s by RockShox in the USA to improve control and comfort in mountain biking, fork travel was designed to let the front wheel “travel” vertically over obstacles instead of transmitting those forces to the rider’s arms and upper body. The term “travel” refers to the vertical movement range of the fork stanchions into the lowers, and it’s essential for tailoring a bike’s geometry, ride feel, and suspension performance to specific riding styles and trail demands.

What is the rear suspension travel on the bike?

Suspension rear travel on a bike is the maximum vertical distance the rear wheel can move as the rear shock compresses, usually measured in millimeters (e.g., 100 mm for XC, 160 mm for enduro, 200+ mm for downhill), and it defines how much impact absorption and terrain control the rear suspension system provides. First introduced in the early 1990s by brands like Specialized and GT in the USA, rear suspension travel evolved from simple linkage designs to advanced systems with floating pivots, progressive leverage ratios, and tunable damping, aimed at improving rider comfort, traction, and speed on rough, technical terrain. The name “travel” reflects how far the rear wheel can physically “travel” upward through its suspension arc, and it’s critical to suspension kinematics, affecting pedaling efficiency, shock stroke, and overall handling across mountain biking disciplines.

What is the spring travel on the bike?

The spring travel on a bike refers to the maximum distance a suspension spring—whether air or coil—can compress under load, typically matching the suspension travel of the fork or rear shock (e.g., 100–200 mm), and it directly influences how much impact energy the system can absorb while working in tandem with damping, sag, and the bike’s leverage ratio to control ride feel and performance.

How does bike suspension travel work?

Bike suspension travel works by allowing the fork or rear shock to compress over a certain distance—measured in millimeters—as components like the air or coil spring, damper, piston, and linkage systems absorb and dissipate impact forces from the terrain. Shorter travel (e.g., 80–120 mm) offers more efficient pedaling and is ideal for XC and trail riding, while longer travel (e.g., 150–200+ mm) provides greater impact absorption for enduro and downhill disciplines, sacrificing some efficiency for enhanced control, traction, and stability on rough descents.

How does a bike suspension fork travel work?

Bike suspension fork travel works by allowing the stanchions to slide into the lowers as the air or coil spring compresses to absorb impact, while the damper (with components like the piston, valves, and rebound/compression circuits) controls the rate of compression and return. Forks with shorter travel (e.g., 100–130 mm) offer lightweight, efficient performance suited for XC and trail, while longer travel forks (e.g., 150–200 mm) provide more absorption and control for enduro and downhill, though with increased weight and reduced pedaling efficiency.

How does the bike rear suspension travel work?

Bike rear suspension travel works by allowing the rear triangle of the frame to move vertically through a system of linkages, compressing the rear shock (air or coil) as the bike encounters impacts, while internal components like the spring, damper piston, and oil flow circuits manage how energy is absorbed and released. Shorter travel setups (e.g., 100–130 mm) are more efficient and responsive for XC and light trail riding, whereas longer travel systems (e.g., 150–200+ mm) provide greater control, traction, and comfort on rough terrain, making them ideal for enduro and downhill, though at the cost of added weight and reduced climbing efficiency.

Do all bike suspension travels the same?

No, not all bike suspension travels are the same because different bikes are designed for specific disciplines—like XC, trail, enduro, or downhill—and each requires varying amounts of travel to balance efficiency, weight, and impact absorption, ranging from 80 mm for cross-country to over 200 mm for downhill. The differences in travel affect the bike’s geometry, leverage ratio, suspension feel, and overall performance on different types of terrain.

Types of bike suspension travel

Types of bike suspension travel are commonly categorized by travel length (short, mid, long, downhill), suspension location (fork or rear), and bike type (hardtail, trail, enduro, downhill, etc.), each designed to meet specific performance demands, terrain challenges, and rider preferences. These classifications exist because the amount and placement of travel directly affect a bike’s efficiency, comfort, control, and geometry, with shorter travel favoring lightweight climbing and longer travel built for aggressive descents and impact absorption.

Bike suspension travel sorted by travel types

Bike suspension travel sorted by travel types includes short travel, mid travel, long travel, and downhill travel, each defined by the amount of suspension compression (measured in millimeters) and tailored to different riding demands, from efficient climbing to aggressive descending. This classification helps riders choose the right suspension setup based on terrain, speed, impact level, and pedaling efficiency across various mountain biking disciplines.

1. Bike short travel (80–120 mm): Designed for cross-country (XC) and downcountry riding, short travel offers efficient pedaling, low weight, and responsive handling on smooth to moderately rough terrain.
2. Bike mid travel (120–150 mm): Ideal for trail and all-mountain bikes, mid travel balances climbing efficiency with added bump absorption for mixed terrain and technical trails.
3. Bike long travel (150–170 mm): Built for enduro and aggressive trail riding, long travel provides enhanced control, traction, and impact absorption over rough, steep descents while still being climbable.
4. Bike downhill travel (170–220+ mm): Optimized for downhill (DH) racing and freeride, downhill travel offers maximum suspension for absorbing big hits, drops, and high-speed impacts, sacrificing climbing efficiency for stability.

Bike suspension travel sorted by suspension types

Bike suspension travel sorted by suspension types includes fork travel and rear travel, which are categorized based on whether the suspension is located at the front (fork) or rear (shock) of the bike. This classification helps riders and mechanics understand how much travel each end of the bike contributes to overall performance, geometry, and terrain adaptability.

1. Bike fork travel: Refers to the vertical compression range of the front suspension fork (typically 80–200 mm), affecting steering response, front-end control, and how the bike handles impacts from the front wheel.
2. Bike rear travel: Describes the maximum movement of the rear wheel through the suspension linkage and shock (usually 100–220 mm), impacting traction, comfort, and rear-end stability on climbs and descents.

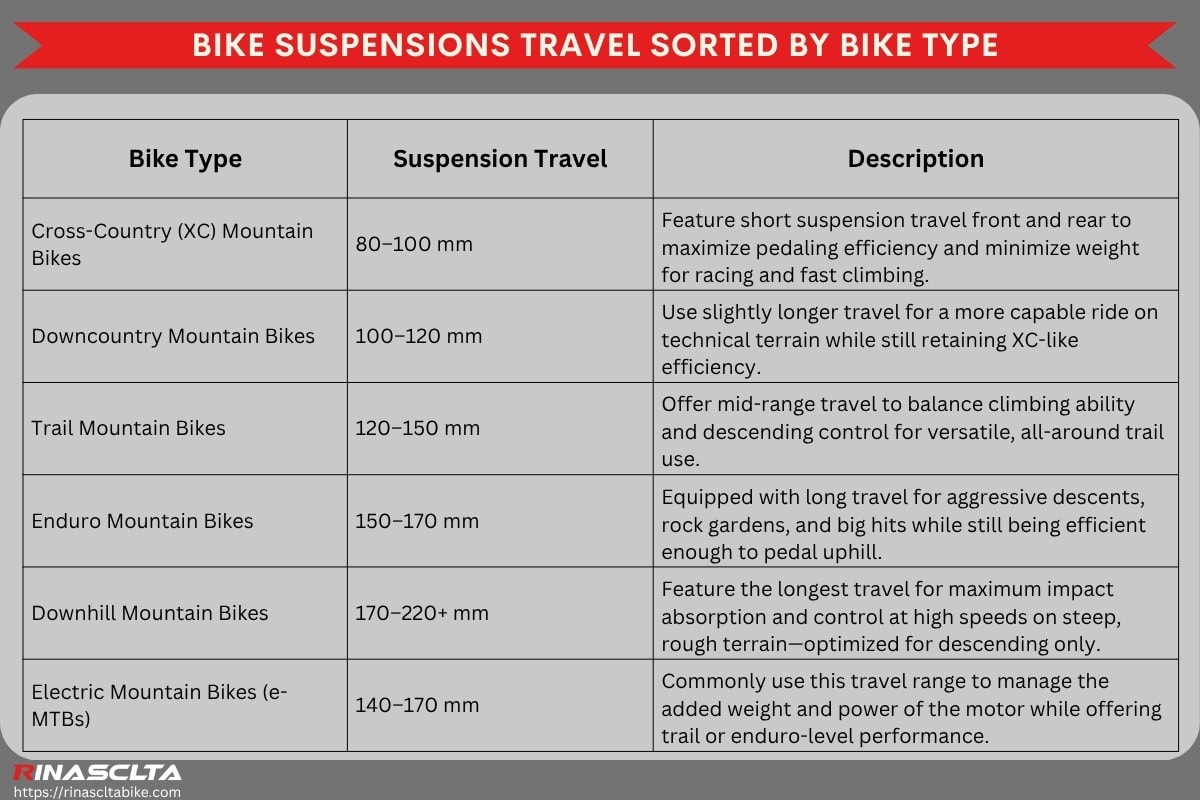

Bike suspensions travel sorted by bike type

Bike suspension travel sorted by mountain bike type includes cross-country, downcountry, trail, enduro, downhill, and electric mountain bikes, with each category defined by the typical terrain, speed, and technical demands it’s designed for. Sorting suspension travel by bike type helps riders choose the right amount of travel to match their riding style and ensure optimal performance, efficiency, and durability on the trails.

1. Bike cross-country mountain bikes: Feature short suspension travel (typically 80–100 mm) front and rear to maximize pedaling efficiency and minimize weight for racing and fast climbing.
2. Bike downcountry mountain bikes: Use slightly longer travel (100–120 mm) for a more capable ride on technical terrain while still retaining XC-like efficiency.
3. Bike trail mountain bikes: Offer mid-range travel (120–150 mm) to balance climbing ability and descending control for versatile, all-around trail use.
4. Bike enduro mountain bikes: Equipped with long travel (150–170 mm) for aggressive descents, rock gardens, and big hits while still being efficient enough to pedal uphill.
5. Bike downhill mountain bikes: Feature the longest travel (170–220+ mm) for maximum impact absorption and control at high speeds on steep, rough terrain—optimized for descending only.
6. Bike electric mountain bikes (e-MTBs): Commonly use 140–170 mm of travel to manage the added weight and power of the motor while offering trail or enduro-level performance.

Is 150mm travel enough for downhill?

Yes, 150mm travel is enough for downhill if you’re riding moderate DH trails, bike park flow lines, or you’re a lightweight or skilled rider using a well-tuned enduro bike with quality suspension damping and geometry designed for descending. But it may fall short on steep, rocky, or high-speed downhill tracks where 170–220 mm travel provides more forgiveness, better heat management, and improved bottom-out resistance.

Is 160mm travel enough for downhill?

Yes, 160mm travel is enough for downhill if you’re riding light to moderate DH terrain, bike park jumps, or using a modern enduro bike with progressive suspension, slack geometry, and strong brakes and tires. But it can still be undergunned on World Cup-level DH trails or extreme terrain, where dedicated downhill bikes with 200+ mm travel, longer wheelbases, and dual-crown forks offer significantly more control and margin for error.

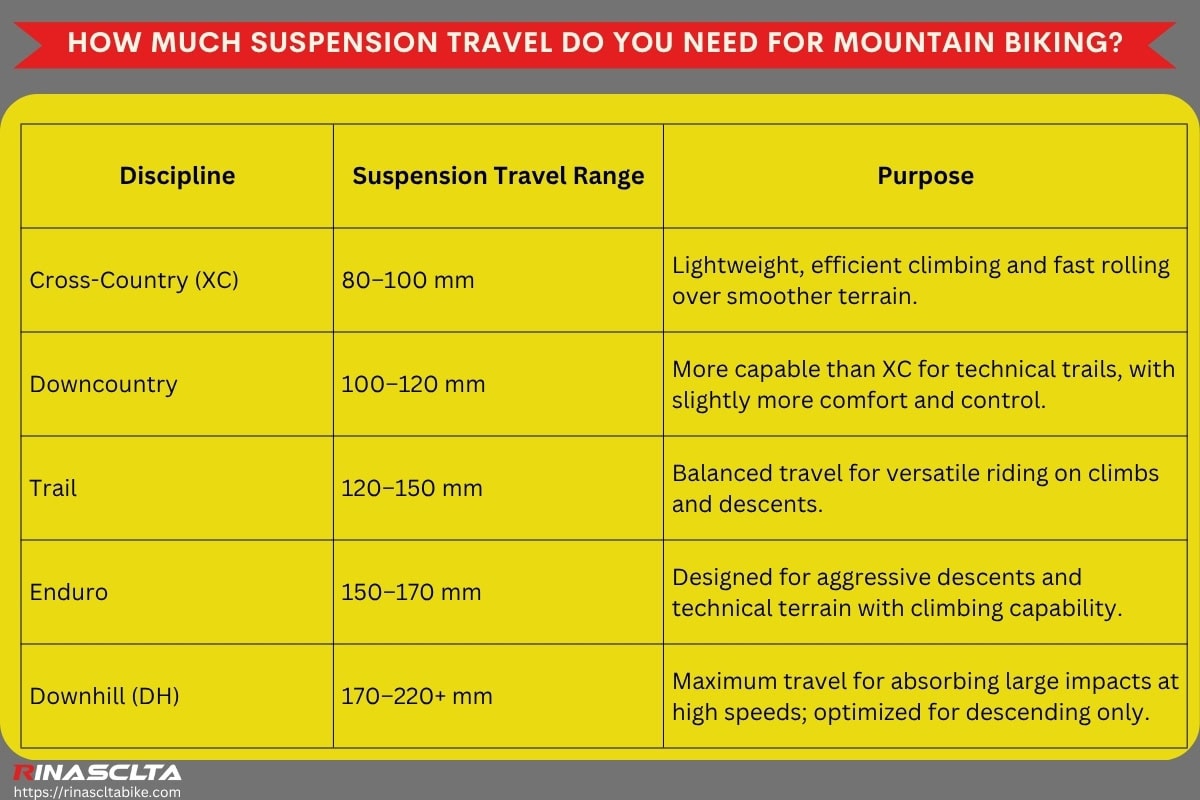

How much suspension travel do you need for mountain biking?

Suspension travel for mountain biking typically ranges from 80 mm to over 220 mm, with different travel lengths suited for various disciplines such as cross-country, trail, enduro, and downhill—each balancing efficiency, comfort, and control based on terrain and speed. This classification helps riders choose the right setup by matching the suspension’s compression capability to the riding style, impact level, and bike geometry.

How do you choose a bike fork’s suspension travel?

You could choose a bike fork’s suspension travel by considering your riding discipline, terrain type, and frame compatibility, ensuring the travel length matches both your bike geometry and intended use—shorter travel offers better efficiency and responsiveness, while longer travel enhances control and impact absorption on technical terrain. Using a fork with the correct travel range preserves your bike’s head angle, bottom bracket height, and handling characteristics, which are critical for performance and safety.

1. 80–100 mm: Ideal for cross-country (XC) bikes; lightweight and efficient, focused on speed and climbing on smoother trails.
2. 100–120 mm: Used for downcountry and light trail riding; offers a bit more comfort and control while still efficient.
3. 120–150 mm: Best for trail bikes; balances climbing and descending, suitable for mixed terrain and general mountain biking.
4. 150–170 mm: Designed for enduro and aggressive trail riding; absorbs big hits and technical descents with better traction.
5. 170–200+ mm: Built for downhill (DH) bikes; provides maximum travel for rough, high-speed descents with steep drops and jumps.

How much fork travel should I be using?

You should choose your fork travel based on your riding style, terrain difficulty, and bike frame design, as using the correct amount ensures optimal control, geometry, and suspension performance. For example:

1. 80–100 mm fork travel – for cross-country (XC) forks focused on climbing and lightweight efficiency.
2. 100–120 mm fork travel – for downcountry/trail forks that provide more comfort and control on technical XC terrain.
3. 120–150 mm fork travel – for trail bike forks that balance agility and descending confidence.
4. 150–170 mm fork travel – for enduro forks that absorb rough, steep descents while staying pedalable.
5. 170–200+ mm fork travel – for downhill forks, typically dual-crown, offering maximum travel for aggressive, high-speed descents.

How do you choose bike rear suspension travel?

You should choose bike rear suspension travel based on your riding discipline, terrain type, and frame compatibility, since rear travel directly impacts traction, comfort, pedaling efficiency, and the bike’s geometry. The right amount ensures the rear shock works in harmony with your frame’s leverage ratio, linkage design, and intended use.

1. You should use 80–100 mm rear travel for cross-country (XC), where efficient climbing and low weight matter most on smoother trails.
2. You should use 100–120 mm rear travel for downcountry, if you want more capability without sacrificing XC-like responsiveness.
3. You should use 120–150 mm rear travel for trail riding, giving you a well-rounded balance between pedaling efficiency and descent control.
4. You should use 150–170 mm rear travel for enduro, where big hits, rock gardens, and steep descents require more absorption without losing climbing ability.
5. You should use 170–220+ mm rear travel for downhill, as this provides maximum impact absorption, traction, and control at high speeds on rough terrain, though it sacrifices climbing performance.

When do you choose a long-travel MTB?

You should choose a long-travel MTB when riding steep, technical, and rough terrain such as enduro or downhill trails, where travel in the range of 150–220+ mm helps absorb big hits, drops, and high-speed impacts, providing maximum control, traction, and confidence on descents.

When do you choose a short-travel MTB?

You should choose a short-travel MTB when riding smooth to moderately technical terrain such as cross-country or downcountry, where travel between 80–120 mm prioritizes pedaling efficiency, low weight, and responsiveness, making it ideal for climbing, racing, and fast rolling.

What is the best suspension travel?

The best suspension travel is typically 120–150 mm, as it offers the most versatile performance across a wide range of mountain biking disciplines—balancing climbing efficiency, descending control, and comfort for everything from trail to light enduro riding. While the “best” travel ultimately depends on your terrain and riding style, this mid-travel range provides an ideal compromise between agility and capability, making it the go-to choice for most riders looking for one bike that can do it all.

Is more suspension travel better?

No, more suspension travel is not better if you’re riding smooth trails, climbing frequently, or racing cross-country, because excessive travel adds weight, reduces pedaling efficiency, and can negatively affect bike geometry and handling responsiveness. But it is better for aggressive descents, rocky terrain, and high-speed downhill riding, where longer travel (e.g., 170–220+ mm) provides essential impact absorption, traction, and control.

How do you adjust the suspension travel on a mountain bike?

You could adjust the suspension travel on a mountain bike by changing internal spacers or shafts, modifying air or coil spring components, checking frame compatibility, and retuning your suspension settings—because each step ensures your geometry, performance, and safety remain optimized with the new travel setup.

1. Travel spacers or shafts: Swap or modify internal travel spacers or air shafts in the fork or rear shock to increase or decrease suspension travel as supported by your model.
2. Air spring volume spacers (tokens): Add or remove volume tokens to change the progressiveness of the air spring; this affects suspension feel but not actual travel.
3. Coil spring stroke length: Replace coil springs with different stroke lengths to alter travel on coil shocks, ensuring it’s within damper and frame limits.
4. Frame compatibility: Confirm that your bike frame, linkage system, and head tube angle are designed to accommodate the new travel amount.
5. Suspension tuning: After changing travel, adjust sag, rebound, and compression damping to maintain consistent ride quality and bike handling.
