Aluminum alloy is a versatile and widely used material, known for its combination of lightweight, high strength, and excellent corrosion resistance. It typically appears as a silvery-white metal and is used in various applications due to its advantageous properties. Top features of aluminum alloy include its high strength-to-weight ratio, good thermal and electrical conductivity, ease of fabrication, recyclability, and resistance to corrosion. These features make aluminum alloys ideal for use in aerospace components, automotive parts, construction materials, consumer electronics, and packaging.
According to UVA Engineers Edgar A. Starke, Jr. from the University of Virginia, U.S.A, in a 1999 study, aluminum alloys have been the primary material for aircraft structural components since the 1930s due to their well-known performance characteristics, cost-effective fabrication, and extensive design experience, ensuring their continued use in commercial and military aviation.
This article will define aluminum alloy, explore the different types, the applications that aluminum alloy is used for, the strength and cost of it.
Table of Contents
What is aluminum alloy?
Aluminum alloy is a material composed primarily of aluminum (Al) mixed with various other elements such as copper (Cu), magnesium (Mg), silicon (Si), manganese (Mn), and zinc (Zn) to enhance its mechanical properties and corrosion resistance. These aluminum alloys are classified into different series based on their principal alloying elements, such as 2000 series (copper), 5000 series (magnesium), and 6000 series (magnesium and silicon), with tensile strengths typically ranging from 70 MPa to over 600 MPa, depending on the specific alloy and treatment process. Aluminum alloys are widely used in aerospace, automotive, construction, and consumer electronics due to their high strength-to-weight ratio, excellent corrosion resistance, and good thermal and electrical conductivity.
What does aluminum alloy look like?
Aluminum alloy typically appears as a silvery-gray metal with a smooth and shiny surface. It can be shaped into various forms, such as sheets, plates, bars, and extrusions, depending on its intended application. The touch of aluminum alloy feels cool and solid due to its good thermal conductivity and dense structure. Its surface can be polished to a high luster or left with a matte finish, and it often exhibits a sleek, modern appearance.
What is the color of aluminum alloy?
The color of aluminum alloy is typically silvery-gray because of its natural metallic luster. This appearance is due to the reflective properties of aluminum and the thin oxide layer that forms on its surface, which protects it from corrosion and maintains its shiny look.
What is the history of aluminum alloy?
The history of aluminum alloy began in 1825 when Hans Christian Ørsted, a Danish physicist and chemist, successfully isolated aluminum, and was later refined in 1827 by Friedrich Wöhler. Significant advances were made in the late 19th and early 20th centuries, notably by Charles Martin Hall and Paul Héroult, who independently developed the Hall-Héroult process in 1886, making aluminum production more efficient and cost-effective, which led to the development of various aluminum alloys widely used in industries such as aerospace and automotive.

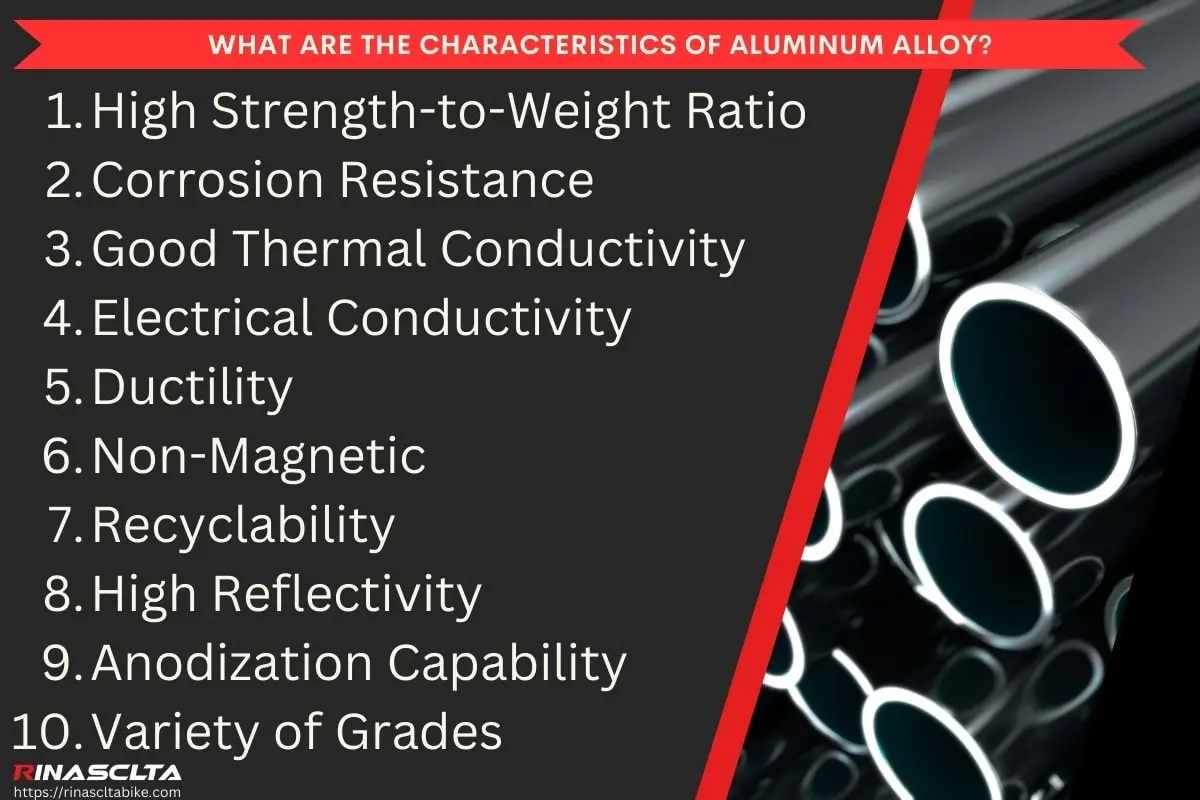

What are the characteristics of aluminum alloy?
The characteristics of aluminum alloy are listed below.
- High Strength-to-Weight Ratio: Aluminum alloys offer excellent strength while remaining lightweight, making them ideal for aerospace and automotive applications.
- Corrosion Resistance: Many aluminum alloys form a protective oxide layer that resists corrosion, making them suitable for marine and outdoor applications.
- Good Thermal Conductivity: Aluminum alloys conduct heat well, which is beneficial in applications like heat exchangers and cooling systems.
- Electrical Conductivity: Aluminum alloys have good electrical conductivity, making them useful in electrical transmission lines.
- Ductility: Aluminum alloys can be easily shaped and formed, which allows for a wide range of manufacturing processes such as rolling, extruding, and forging.
- Non-Magnetic: Aluminum alloys are non-magnetic, which is important for applications in the electronics and aerospace industries where magnetic interference needs to be minimized.
- Recyclability: Aluminum alloys can be recycled without losing their properties, making them environmentally friendly and cost-effective.
- High Reflectivity: Aluminum alloys reflect both visible light and radiant heat, making them useful in lighting fixtures and thermal insulation applications.
- Anodization Capability: Aluminum alloys can be anodized to improve their surface hardness and resistance to wear and corrosion.
- Variety of Grades: There are numerous grades of aluminum alloys, such as 6061, 7075, and 2024, each tailored for specific mechanical properties and applications.
What are the aluminum alloy’s atomic characteristics?
The aluminum alloy’s atomic characteristics include an atomic number of 13, an atomic mass of approximately 26.98 atomic mass units (amu), and it typically exists in a face-centered cubic (FCC) crystal structure, which contributes to its high ductility and good mechanical properties.
Is aluminum alloy on the periodic table?
No, aluminum alloy is not on the periodic table because it is not a single element but a mixture of aluminum and other elements such as copper, magnesium, silicon, and zinc, combined to enhance its properties. The periodic table lists pure chemical elements, while alloys are combinations of these elements.
What kind of metal is aluminum alloy?
Aluminum alloy is a non-ferrous metal because it is primarily composed of aluminum, which does not contain significant amounts of iron. This classification is due to its chemical composition, which includes aluminum as the base element and various other elements such as copper, magnesium, silicon, and zinc to enhance its mechanical and physical properties. Non-ferrous metals are known for their resistance to corrosion, lightweight nature, and good conductivity, making aluminum alloys suitable for a wide range of applications in industries such as aerospace, automotive, and construction.
What is the aluminum alloy symbol?
The aluminum alloy symbol does not exist in the same way as chemical element symbols on the periodic table. Instead, aluminum alloys are designated by specific series numbers that indicate their composition and properties. For example, the 6061 aluminum alloy is identified by the number “6061,” where “6” indicates the principal alloying element (magnesium and silicon in this case), and the subsequent numbers provide further detail on the specific composition and tempering.
Is aluminum alloy a metal?
Yes, aluminum alloy is a metal because it is primarily composed of aluminum, a metallic element, combined with other metallic elements like copper, magnesium, silicon, and zinc to enhance its properties, such as strength, durability, and corrosion resistance. These characteristics are typical of metals and make aluminum alloys suitable for a wide range of industrial and commercial applications.
Is aluminum alloy an element?
No, aluminum alloy is not an element because it is a mixture of aluminum with other elements such as copper, magnesium, silicon, and zinc, which are combined to enhance its mechanical and physical properties. An element is a pure substance consisting of only one type of atom, whereas an alloy is a blend of multiple elements.
Is aluminum alloy a compound?
No, aluminum alloy is not a compound because it is a mixture of aluminum and other elements like copper, magnesium, silicon, and zinc, physically combined to enhance its properties, rather than chemically bonded in fixed proportions.
Aluminum vs aluminum alloy, what is the difference?
The difference between aluminum and aluminum alloy is that aluminum is a pure chemical element with the atomic number 13 and symbol Al, known for its lightweight and corrosion-resistant properties, while aluminum alloy is a mixture of aluminum with other elements such as copper, magnesium, silicon, and zinc, which are added to enhance its mechanical properties, strength, and durability.
Aluminum alloy vs alloy, what is the difference?
The difference between aluminum alloy and alloy is that aluminum alloy specifically refers to a mixture of aluminum with other elements such as copper, magnesium, silicon, and zinc to enhance its properties, whereas an alloy is a general term for any mixture of a metal with one or more other elements to improve its mechanical and physical characteristics, such as strength, durability, and resistance to corrosion. Aluminum alloys are a subset of the broader category of alloys, which includes other metal combinations like steel (iron and carbon) and brass (copper and zinc).
Is aluminum alloy malleable?
Yes, aluminum alloy is malleable because it can be easily shaped and formed into various products through processes such as rolling, forging, and extrusion due to its ductile nature.
What are the types of aluminum alloy?
The types of aluminum alloys are listed below, they are sorted based on their principal alloying element and series classification.
- 1000 Series (Pure): Aluminum Alloy 1050, 1100, and 1350 contain over 99% aluminum, known for excellent corrosion resistance, high thermal and electrical conductivity, and good workability, often used in chemical, electrical, and food processing industries.
- 2000 Series (Copper): Aluminum Alloy 2024 contains copper as the principal alloying element, offering high strength and good machinability, widely used in aerospace structures and military applications.
- 3000 Series (Manganese): Aluminum Alloy 3003, 3004, and 3005 contain manganese, known for good corrosion resistance, formability, and moderate strength, commonly used in cooking utensils, storage tanks, and building products.
- 4000 Series (Silicon): Alloy 1100 vs 5005 Spiral Fin combines 1100 alloy’s corrosion resistance with 5005 alloy’s weldability and moderate strength, often used in heat exchangers.
- 5000 Series (Magnesium): Aluminum Alloy 5005, 5182, 5052, 5657, and 5754 contain magnesium, known for good corrosion resistance, weldability, and moderate to high strength, used in architectural applications, automotive, marine environments, and fuel tanks.
- 6000 Series (Magnesium and Silicon): Aluminum Alloy 6061 contains magnesium and silicon, offering excellent mechanical properties, weldability, and corrosion resistance, widely used in construction, automotive, and aerospace applications.
- 7000 Series (Zinc): Aluminum Alloy 7075 contains zinc, providing very high strength, toughness, and fatigue resistance, commonly used in aerospace, military, and high-performance sporting equipment.
- 9000 Series (Other): Aluminum Alloy 9030 is a specialized alloy used in unique applications where specific mechanical properties are required.
Type | Explanation |
Aluminum Alloy 1050 | Contains 99.5% pure aluminum, known for excellent corrosion resistance and high electrical conductivity. |
Aluminum Alloy 1100 | Contains 99% pure aluminum, offering good corrosion resistance, workability, and high thermal conductivity, commonly used in chemical and food processing industries. |
Aluminum Alloy 1350 | Contains 99.5% pure aluminum, with high electrical conductivity, often used in electrical applications like transformers and bus bars. |
Aluminum Alloy 2024 | Contains copper as the principal alloying element, offering high strength and good machinability, widely used in aerospace structures and military applications. |
Aluminum Alloy 3003 | Contains manganese, known for good corrosion resistance, formability, and moderate strength, used in cooking utensils, chemical equipment, and storage tanks. |
Aluminum Alloy 3004 | Similar to 3003 but with higher strength, used in beverage cans, cooking utensils, and building products. |
Aluminum Alloy 3005 | Contains manganese and magnesium, providing higher strength than 3003, commonly used in roofing, siding, and storage tanks. |
Alloy 1100 vs 5005 Spiral Fin | Combines 1100 aluminum alloy’s corrosion resistance with 5005 alloy’s good weldability and moderate strength, often used in heat exchangers. |
Aluminum Alloy 5005 | Contains magnesium, known for good corrosion resistance, weldability, and moderate strength, used in architectural applications, automotive, and marine environments. |
Aluminum Alloy 5182 | Offers higher strength and excellent corrosion resistance, commonly used in beverage can ends, automotive panels, and other applications requiring formability. |
Aluminum Alloy 5052 | Contains magnesium and chromium, providing high fatigue strength and excellent corrosion resistance, used in marine environments, fuel tanks, and pressure vessels. |
Aluminum Alloy 5657 | Known for its bright finish and good corrosion resistance, commonly used in decorative and architectural applications. |
Aluminum Alloy 5754 | Contains magnesium, offering good corrosion resistance and weldability, used in automotive body panels and marine applications. |
Aluminum Alloy 6061 | Contains magnesium and silicon, known for its excellent mechanical properties, weldability, and corrosion resistance, widely used in construction, automotive, and aerospace applications. |
Aluminum Alloy 7075 | Contains zinc, offering very high strength, toughness, and fatigue resistance, commonly used in aerospace, military, and high-performance sporting equipment. |
Aluminum Alloy 9030 | A specialized alloy often used in unique applications where specific mechanical properties are required. |
What is aluminum alloy made of?
Aluminum alloy is made of aluminum as the primary element, combined with other elements such as copper, magnesium, silicon, manganese, and zinc to enhance its mechanical properties. These additional elements are added in varying proportions depending on the desired characteristics of the alloy. For example, copper increases strength and machinability, magnesium improves corrosion resistance and strength, silicon enhances fluidity and reduces melting temperature, manganese increases tensile strength and resistance to wear, and zinc provides high strength and hardness.
How is aluminum alloy made?
Aluminum alloy is made through a process that involves the following steps.
- Bauxite Extraction: The primary raw material for aluminum alloys is bauxite ore, which is mined from the earth.
- Alumina Refining: Bauxite is refined into alumina (aluminum oxide) using the Bayer process. In this process, bauxite is crushed and mixed with sodium hydroxide, which dissolves the alumina. The solution is then heated and filtered to remove impurities, leaving a pure alumina precipitate.
- Electrolysis: Alumina is then subjected to electrolysis in a process called the Hall-Héroult process. In this process, alumina is dissolved in molten cryolite and then electrolyzed to produce pure aluminum metal.
- Alloying: The pure aluminum is then mixed with other elements such as copper, magnesium, silicon, manganese, and zinc. This can be done by adding the alloying elements to molten aluminum in specific proportions to achieve the desired properties.
- Casting: The molten aluminum alloy is poured into molds to form ingots, billets, or other shapes depending on the intended use.
- Heat Treatment: The alloy may undergo heat treatment processes such as annealing, solution heat treatment, and aging to enhance its mechanical properties. These processes involve heating the alloy to specific temperatures and then cooling it at controlled rates to achieve the desired microstructure and properties.
- Forming: Finally, the aluminum alloy is formed into final products through various methods such as rolling, extrusion, forging, or machining.
What are the properties of aluminum alloy?
The properties of aluminum alloy include high strength-to-weight ratio, excellent corrosion resistance, good thermal and electrical conductivity, high ductility, non-magnetic nature, recyclability, high reflectivity, capability for anodization, various grades with specific mechanical properties, and the ability to be easily machined and welded.
What are the physical properties of aluminum alloy?
Here is a table summarizing the physical properties of various types of aluminum alloys as below. These properties highlight the versatility of aluminum alloys in various industrial, commercial, and consumer applications.
Alloy Series | Density (g/cm³) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Thermal Conductivity (W/m·K) | Electrical Conductivity (% IACS) | Melting Point (°C) |
1000 Series | 2.71 | 70 – 180 | 30 – 110 | 15 – 35 | 230 – 235 | 60 – 65 | 660 |
2000 Series | 2.78 | 400 – 520 | 275 – 345 | 10 – 15 | 140 – 190 | 30 – 40 | 510 – 635 |
3000 Series | 2.73 | 110 – 285 | 95 – 185 | 10 – 30 | 160 – 180 | 40 – 50 | 600 – 655 |
4000 Series | 2.70 | 200 – 380 | 180 – 300 | 5 – 15 | 140 – 170 | 30 – 40 | 577 – 630 |
5000 Series | 2.68 | 200 – 350 | 90 – 290 | 15 – 25 | 160 – 210 | 28 – 32 | 580 – 640 |
6000 Series | 2.70 | 240 – 310 | 120 – 270 | 10 – 20 | 160 – 210 | 40 – 50 | 580 – 650 |
7000 Series | 2.80 | 450 – 600 | 380 – 500 | 5 – 15 | 130 – 150 | 30 – 35 | 475 – 635 |
9000 Series | 2.74 | Varies by specific composition | Varies by specific composition | Varies by specific composition | Varies by specific composition | Varies by specific composition | Varies by specific composition |
What are the chemical properties of aluminum alloy?
The chemical properties of aluminum alloy are listed below, which highlight the suitability of different aluminum alloys for various environmental and industrial applications.
Alloy Series | Corrosion Resistance | Oxidation Resistance | Reactivity | Alloying Elements | Passivation |
1000 Series | Excellent | High | Low | 99%+ Al | Forms stable oxide layer |
2000 Series | Moderate | Moderate | High | Al, Cu | Requires coating for corrosion resistance |
3000 Series | Good | High | Moderate | Al, Mn | Forms stable oxide layer |
4000 Series | Good | Moderate | Moderate | Al, Si | Forms stable oxide layer |
5000 Series | Excellent | High | Low | Al, Mg | Forms stable oxide layer |
6000 Series | Good | High | Moderate | Al, Mg, Si | Forms stable oxide layer |
7000 Series | Moderate | Moderate | High | Al, Zn | Requires coating for corrosion resistance |
9000 Series | Varies by specific composition | Varies by specific composition | Varies by specific composition | Varies by specific composition | Varies by specific composition |
Is aluminum alloy a magnetic material?
No, aluminum alloy is not a magnetic material because aluminum and its alloys do not contain iron, cobalt, or nickel, which are the elements necessary to exhibit strong magnetic properties. Aluminum alloys are generally non-magnetic due to their atomic structure and lack of ferromagnetic elements.
How is aluminum alloy’s corrosion resistance?
Aluminum alloy’s corrosion resistance is generally excellent due to the formation of a thin, protective oxide layer (Al₂O₃) on its surface when exposed to air. This layer effectively prevents further oxidation and protects the underlying metal from corrosion. The specific resistance can vary depending on the alloy composition; for example, 5000 series aluminum alloys, which contain magnesium, are particularly known for their outstanding corrosion resistance, especially in marine environments. Typical values for corrosion rates in aluminum alloys are very low, often less than 0.1 mm per year under standard atmospheric conditions。
Is aluminum alloy a mixture?
No, aluminum alloy is not a mixture because it is a homogeneous material where aluminum is combined with other elements like copper, magnesium, silicon, and zinc at the atomic level to form a uniform substance with enhanced properties, rather than a simple physical blend of its components.
Is aluminum alloy reactive?
No, aluminum alloy is not highly reactive because it forms a stable oxide layer (Al₂O₃) on its surface that protects it from further reaction with the environment, which makes it highly resistant to corrosion and oxidation. This oxide layer acts as a barrier, preventing the underlying metal from reacting with air or water under normal conditions.
Is aluminum alloy a transition metal?
No, aluminum alloy is not a transition metal because aluminum, the primary component, is classified as a post-transition metal. Transition metals are defined by their ability to form compounds with partially filled d-orbitals, and aluminum does not have this characteristic as it is located in group 13 of the periodic table.
What are the advantages of aluminum alloy?
The advantages of aluminum alloy are numerous and are included below.
- Lightweight: Aluminum alloys have a high strength-to-weight ratio, making them ideal for applications where reducing weight is crucial, such as in the aerospace and automotive industries.
- Corrosion Resistance: The formation of a natural oxide layer on aluminum alloys provides excellent resistance to corrosion, especially in marine and industrial environments.
- Recyclability: Aluminum alloys are highly recyclable without losing their properties, making them an environmentally friendly material choice.
- Good Thermal and Electrical Conductivity: Aluminum alloys conduct heat and electricity efficiently, which is beneficial for applications in electronics, heat exchangers, and cooking utensils.
- Versatility and Workability: Aluminum alloys can be easily formed, machined, and welded, allowing for a wide range of applications and complex designs in manufacturing and construction.
What are the limitations of aluminum alloy?
The limitations of aluminum alloy are listed below.
- Lower Strength Compared to Some Alloys: While strong for its weight, aluminum alloys generally have lower tensile strength compared to steel, making them less suitable for very high-stress applications.
- Susceptibility to Cracking: Aluminum alloys can be prone to fatigue cracking and stress corrosion cracking, especially under cyclic loads.
- Thermal Expansion: Aluminum alloys have a higher coefficient of thermal expansion, which can lead to issues in applications where dimensional stability over a wide temperature range is critical.
- Welding Challenges: Some aluminum alloys, particularly those in the 2000 and 7000 series, can be difficult to weld and may require special techniques and filler materials to ensure strong joints.
- Cost: High-quality aluminum alloys and their processing can be more expensive than other materials, such as some steels, due to the cost of alloying elements and manufacturing processes.
What is aluminum alloy used for?
Aluminum alloy is used for a wide range of applications due to its favorable properties such as high strength-to-weight ratio, corrosion resistance, and excellent workability. Here are 10 applications across different industries below.
- Aerospace: Used in aircraft structures, such as fuselages and wings, due to its high strength and lightweight properties, which improve fuel efficiency.
- Automotive: Employed in car frames, engine blocks, and wheels, enhancing fuel economy and performance by reducing the overall weight of the vehicle.
- Construction: Utilized in building facades, roofing, and window frames for its durability, corrosion resistance, and aesthetic appeal.
- Marine: Used in shipbuilding for hulls, decks, and superstructures due to its excellent resistance to saltwater corrosion.
- Electronics: Applied in heat sinks, casings, and circuit boards for its good thermal and electrical conductivity, which helps in efficient heat dissipation.
- Packaging: Used in beverage cans, foil, and food containers because it is lightweight, non-toxic, and recyclable, providing a protective barrier for food and drinks.
- Railway: Used in train bodies and components to reduce weight and improve energy efficiency while maintaining high strength.
- Sporting Goods: Employed in bicycle frames, baseball bats, and other sports equipment for its combination of light weight and strength, enhancing performance.
- Military: Used in armored vehicles and lightweight bridges, offering a balance of strength, durability, and mobility in defense applications.
- Medical Devices: Applied in prosthetics, surgical instruments, and hospital equipment for its biocompatibility, strength, and ease of sterilization.
Why use aluminum alloy in bicycles?
Aluminum alloy is used in types of bicycles like road bikes, mountain bikes, and gravel bikes because it offers a high strength-to-weight ratio, making the bikes lightweight yet strong. This improves performance, handling, and efficiency, especially important for competitive cycling. Additionally, aluminum alloy provides good corrosion resistance, ensuring durability and longevity in various weather conditions. Its excellent workability allows for complex frame designs and precise manufacturing, which enhances ride quality and aerodynamics. Lastly, aluminum alloy frames are generally more affordable than carbon fiber, making high-performance bikes accessible to a broader range of cyclists.
What aluminum alloy is used in bikes?
6061 aluminum alloy is commonly used in bikes because it offers an excellent balance of strength, weight, and corrosion resistance. This alloy contains magnesium and silicon as its primary alloying elements, which enhance its mechanical properties and make it easy to weld and machine. The 6061 alloy is well-suited for bike frames, providing a combination of durability and performance at a cost-effective price, making it a popular choice for both recreational and competitive cyclists. Additionally, its good formability allows manufacturers to create complex frame shapes and designs, further enhancing the aerodynamics and aesthetics of the bicycle.
Is a 6061 aluminum bike frame good?
Yes, a 6061 aluminum bike frame is good because it offers a great balance of strength, lightweight, and corrosion resistance, making it an excellent choice for many cyclists. Compared to steel, 6061 aluminum is much lighter, which improves the bike’s overall performance and handling. While it may not be as light or stiff as carbon fiber, it is more affordable and provides sufficient durability and performance for both recreational and competitive use. Its weldability and formability also allow for innovative frame designs and improved ride quality.
What aluminum alloys are best for bicycle frames?
6061 and 7005 aluminum alloys are best for bicycle frames because 6061 offers a good balance of strength, weight, and corrosion resistance, while 7005 provides higher strength and better fatigue resistance, making them both ideal for different types of bike frames including road, mountain, and gravel bikes.
What are the benefits of aluminum alloy bikes?
The benefits of aluminum alloy bikes are listed below, which make aluminum alloy bikes a popular choice for many cyclists, from recreational riders to competitive athletes.
- Lightweight
- High strength-to-weight ratio
- Corrosion resistance
- Affordability
- Ease of fabrication and repair
What are the disadvantages of aluminum alloy bikes?
The disadvantages of aluminum alloy bikes are listed below, which can impact the overall performance and longevity of aluminum alloy bikes, especially under certain riding conditions and use cases.
- Stiffness leads to less comfort
- Lower fatigue resistance
- Susceptibility to cracking
- Challenges in welding repairs
- Higher thermal expansion
What are the aluminum alloy manufacturers?
The aluminum alloy manufacturers are some of the largest and most influential companies in the industry, known for their extensive production capabilities and innovative products. Here are the top 10 aluminum alloy manufacturers along with their country/region and capacity, which are leaders in the aluminum alloy market, producing a wide range of products for various industries including aerospace, automotive, construction, and packaging. They are recognized for their significant contributions to the global aluminum supply and their advanced production technologies.
Name | Country/Region | Capacity |
Norsk Hydro ASA | Norway | Market cap $13.07 billion |
Aluminum Corporation of China Limited (Chalco) | China | Market cap $12.40 billion |
China Hongqiao Group Ltd | China | Market cap $7.50 billion |
Alcoa Corporation | United States | Market cap $5.62 billion |
Shandong Nanshan Aluminium Co., Ltd | China | Market cap $4.89 billion |
Aluar Aluminio Argentino S.A.I.C. | Argentina | Market cap $4.02 billion |
Constellium SE | France | Market cap $2.72 billion |
Shanghai Huafon Aluminium Corp | China | Market cap $2.40 billion |
Henan Zhongfu Industrial Co., Ltd | China | Market cap $1.93 billion |
Henan Mingtai Al. Industrial Co., Ltd | China | Market cap $1.86 billion |
What are the aluminum alloy bike manufacturers?
The aluminum alloy bike manufacturers are some of the most renowned in the cycling industry, known for producing high-quality and performance-oriented bicycles. Here are the top 10 aluminum alloy bike manufacturers, along with their country/region and capacity.
Name | Country/Region | Capacity |
Trek | United States | Leading manufacturer with extensive range |
Giant | Taiwan(Region) | World’s largest bicycle manufacturer |
Specialized | United States | High volume, innovative designs |
Cannondale | United States | Known for high-performance bikes |
Canyon | Germany | Direct-to-consumer model, high quality |
Scott | Switzerland | Strong presence in performance bikes |
Bianchi | Italy | Renowned for road and racing bikes |
Merida | Taiwan(Region) | Extensive production capacity |
Orbea | Spain | Customization options, high quality |
Rose | Germany | Direct sales model, strong in Europe |
How strong is the aluminum alloy?
Aluminum alloys vary widely in their strength properties, with typical tensile strengths ranging from 40 MPa to 700 MPa depending on the specific alloy and temper. Here is a table showing the yield strength, tensile strength, density, thermal expansion coefficient, heat capacity and melting points of some common aluminum alloys.
Alloy | Yield Strength (MPa) | Tensile Strength (MPa) | Density (g/cm³) | Thermal Expansion Coefficient (µm/m°C) | Heat Capacity (J/g°C) | Melting Point (°C) |
1100 (Annealed) | 34 | 90 | 2.71 | 23.6 | 0.897 | 660 |
1100 (Strain Hardened) | 117 | 124 | 2.71 | 23.6 | 0.897 | 660 |
2024 (Annealed) | 75 | 185 | 2.78 | 23.2 | 0.875 | 502-638 |
2024 (T3 Temper) | 345 | 485 | 2.78 | 23.2 | 0.875 | 502-638 |
2024 (T351 Temper) | 325 | 470 | 2.78 | 23.2 | 0.875 | 502-638 |
6061 (Annealed) | 55 | 124 | 2.70 | 23.5 | 0.896 | 582-652 |
6061 (T6/T651 Tempers) | 276 | 310 | 2.70 | 23.5 | 0.896 | 582-652 |
7075 (Annealed) | 103 | 228 | 2.80 | 23.1 | 0.960 | 477-635 |
7075 (T6 Temper) | 505 | 572 | 2.80 | 23.1 | 0.960 | 477-635 |
356.0 (As Cast) | 124 | 164 | 2.68 | 22.2 | 0.963 | 557-613 |
356.0 (T6 Temper) | 164 | 228 | 2.68 | 22.2 | 0.963 | 557-613 |
What are the strongest aluminum alloys?
The strongest aluminum alloys are 2024, 6061, and 7075 due to their high tensile and yield strengths, which make them suitable for high-stress applications.
- 2024 Aluminum Alloy: This alloy contains copper as its primary alloying element, providing high strength and fatigue resistance, which is why it’s widely used in aerospace applications.
- 6061 Aluminum Alloy: Known for its versatility, 6061 has a balanced combination of strength, corrosion resistance, and workability, making it ideal for structural components, including those in the automotive and construction industries.
- 7075 Aluminum Alloy: This alloy is one of the highest strength aluminum alloys available, primarily due to its zinc content. It offers excellent fatigue resistance and is commonly used in aerospace and high-performance sporting equipment where high strength-to-weight ratios are critical.
What is the aluminum alloy material density?
The aluminum alloy material density typically ranges from 2.68 to 2.80 grams per cubic centimeter (g/cm³). This density is significantly lower compared to other metals like steel, which has a density of about 7.85 g/cm³, and titanium, which has a density of about 4.51 g/cm³. This lower density is one of the reasons aluminum alloys are favored in applications requiring lightweight materials, such as aerospace and automotive industries.
What is the aluminum alloy melting point?
The aluminum alloy melting point typically ranges from 477°C to 660°C, depending on the specific alloy composition. For comparison, this is lower than the melting point of steel, which ranges from 1370°C to 1510°C, and titanium, which has a melting point of around 1668°C. This relatively lower melting point makes aluminum alloys easier to cast and work with at lower temperatures.
Is aluminum alloy stronger than aluminum?
Yes, aluminum alloy is stronger than pure aluminum because alloying elements such as copper, magnesium, silicon, and zinc are added to aluminum to enhance its mechanical properties. For example, pure aluminum (1100 series) has a tensile strength of about 90 MPa, whereas alloys like 7075 can achieve tensile strengths up to 572 MPa. These additions significantly improve the strength, hardness, and overall durability of the material.
Is aluminum alloy stronger than steel?
No, aluminum alloy is generally not stronger than steel because even the strongest aluminum alloys, like 7075, have a tensile strength of up to 572 MPa, while high-strength steel can have tensile strengths exceeding 1000 MPa. Steel also typically has higher yield strength and better fatigue resistance compared to aluminum alloys.
Is aluminum alloy stronger than titanium?
No, aluminum alloy is generally not stronger than titanium because even the strongest aluminum alloys, like 7075, have a tensile strength of up to 572 MPa, while titanium alloys, such as Ti-6Al-4V, can have tensile strengths around 900 MPa or higher. Titanium also offers a better strength-to-weight ratio and superior corrosion resistance compared to aluminum alloys.
Is aluminum alloy stronger than carbon fiber?
No, aluminum alloy is generally not stronger than carbon fiber because carbon fiber composites can have tensile strengths up to 6,000 MPa, significantly higher than even the strongest aluminum alloys like 7075, which have tensile strengths up to 572 MPa. Carbon fiber also has a higher strength-to-weight ratio, making it a preferred material in applications where both high strength and low weight are critical.
How much is the aluminum alloy?
The aluminum alloy typically costs between $2.00 and $3.00 per kilogram, which translates to approximately $0.90 to $1.36 per pound. For bulk purchases, the price can range from $2,000 to $3,000 per ton. These prices can vary depending on the specific alloy, market conditions, and quantity purchased.
Are aluminum alloy bike frames good?
Yes, aluminum alloy bike frames are good because they offer a high strength-to-weight ratio, making them lightweight and strong, which improves performance and handling. For example, 6061 and 7005 aluminum alloys provide excellent durability and resistance to corrosion, making them suitable for various riding conditions while remaining affordable compared to carbon fiber frames.
Are aluminum alloy bikes better than steel?
Yes, aluminum alloy bikes can be better than steel bikes because they are typically lighter, which enhances speed and handling. For instance, aluminum alloys like 6061 and 7005 offer a good balance of strength and weight, with tensile strengths up to 310 MPa and 572 MPa respectively, while being significantly lighter than steel, which has a density of about 7.85 g/cm³ compared to aluminum’s 2.70-2.80 g/cm³. This makes aluminum alloy bikes more suitable for performance-oriented cycling, especially in competitive and recreational road biking.
Can aluminum alloy bike frames be repaired?
Yes, aluminum alloy bike frames can be repaired because aluminum can be welded to fix cracks or breaks. However, the repair process requires specialized skills and equipment to ensure the integrity of the frame is maintained, and heat treatment may be necessary to restore the original strength of the alloy. For example, alloys like 6061 may require post-weld heat treatment to achieve optimal mechanical properties, ensuring the frame remains safe and durable.
Do aluminum alloy bike frames wear out?
Yes, aluminum alloy bike frames can wear out because they are subject to fatigue over time. Repeated stress and strain from regular use can cause micro-cracks to develop, leading to eventual failure. Aluminum alloys like 6061 and 7005, while durable and strong, have a finite fatigue life, meaning they will eventually wear out after a significant number of load cycles, especially under high-stress conditions.
Do aluminum alloy bikes rust?
No, aluminum alloy bikes do not rust because aluminum forms a protective oxide layer on its surface that prevents further oxidation and corrosion. This oxide layer effectively protects the metal from the typical rusting process that affects iron-based metals, such as steel.
How long do aluminum alloy bike frames last?
Aluminum bike frames typically last between 5 to 10 years because, although they are resistant to corrosion and relatively strong, they are subject to fatigue over time. Regular use, especially under high-stress conditions like mountain biking or racing, can lead to the development of micro-cracks and eventual failure. Proper maintenance and riding within the frame’s intended use can help maximize its lifespan.
